Sorry, this product is no longer offered for sale. The recommended replacement product is reducer-polyimide-heater-240v.

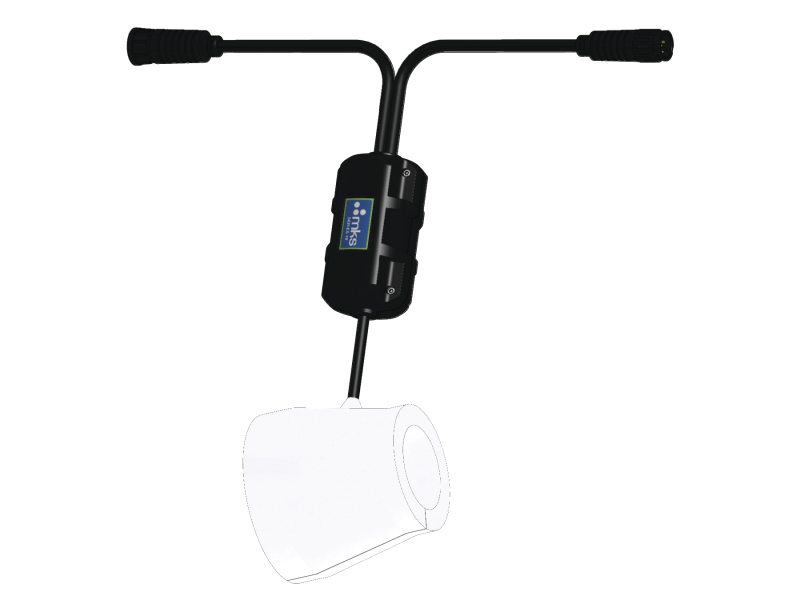

Legacy Series 49 Component Heaters
Model: 491040-2045
Legacy Series 49 Component Heaters
Model: 491040-2045
Overview
Overview
This product is no longer available. Please see the new Series 49UL Heaters for our current selection.
Technical Specs
- SeriesSeries 49
- TypeHeater Jacket
- Insulation MaterialPTFE Teflon-Woven
- Component TypeReducer
- Tube OD4.0 in.
- Tube OD 22.0 in.
- Flange TypeButtweld
- For Use With10023400CR300
- Length3.63 in. (92 mm)
- Temperature Range35 - 200°C
- Voltage Requirements200-240 VAC
- Current Requirements0.32 Amps
- Large End Tangent0.50 in. (13 mm)
- Small End Tangent0.50 in. (13 mm)
