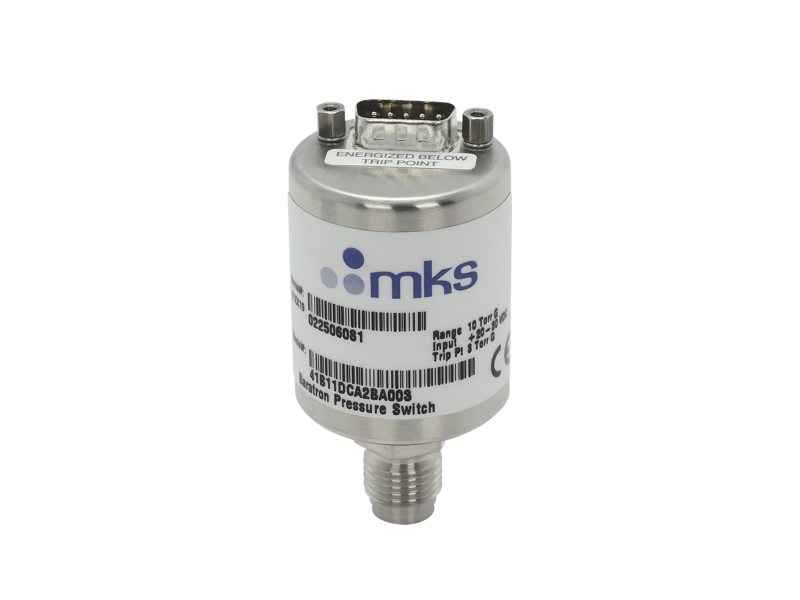

Pressure Switch, Single-ended, 10 Torr, 4VCR Male, 9-Pin Type D Male, Referenced to Atmospheric Pressure

Technical Specs

  • Type
    Vacuum/pressure Switch
  • Configuration
    Single-Ended
  • Pressure Range Full Scale
    10 Torr
  • Fitting Type
    4 VCR male
  • Connector
    9-pin male D subminiature
  • Accuracy
    ±0.5% of Full Scale (± temperature coefficient)
  • Relay Mode
    Energizes below set point
  • Trip Point Dead Band
    ±3% of Full Scale
  • Response Time
    <20 msec
  • Internal Volume
    3.3 cc
  • Temperature Coefficient
    ±0.07% of Full Scale/°C
  • Materials Exposed to Process Gases
    Inconel and 316L stainless steel
  • Overpressure
    2 x Full Scale or 45 psia, whichever is greater
  • Outputs
    Electromechanical relay - SPDT (isolated) contacts rated up to 1 Amp @ 30 VDC resistive.
  • Power Requirements
    20-30 VDC
  • Ambient Operating Temperature
    0-50°C
  • Compliance
    CE Compliant to EMC Directive 2004/108/EC
