Sorry, this product is no longer offered for sale.

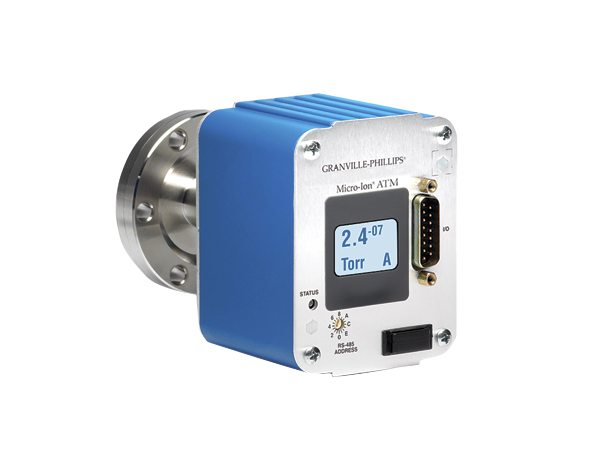

Vacuum Transducer, for 835 VQM, 1x10-9 Torr to ATM
Model: 390802-2-YG-T
Vacuum Transducer, for 835 VQM, 1x10-9 Torr to ATM
Vacuum Transducer, for 835 VQM, 1x10-9 Torr to ATM
Model: 390802-2-YG-T
Overview
Overview
The 390802 Total Pressure Measurement Kit provides accurate, continuous pressure measurement from 10-9 Torr to ATM. Integrating it with the ratiometric VQM system adds partial pressure data and automatic high pressure protection for the VQM gauge.
Technical Specs
-
Operating Temperature10 - 40°C (50 - 104°F), non-condensing
-
Storage Temperature-40 - 70°C (-40 - 158°F)
-
Weight728.5 g (25.7 oz)
-
ComplianceCE
-
TypeVQM Total Pressure Measurement Kit
-
Measurement Range1 x 10-9 to Atmosphere
-
Measurement TechniqueIonization
-
Bake Out Temperature105°C (221°F) maximum, with electronics removed
-
Response Time<25 ms
