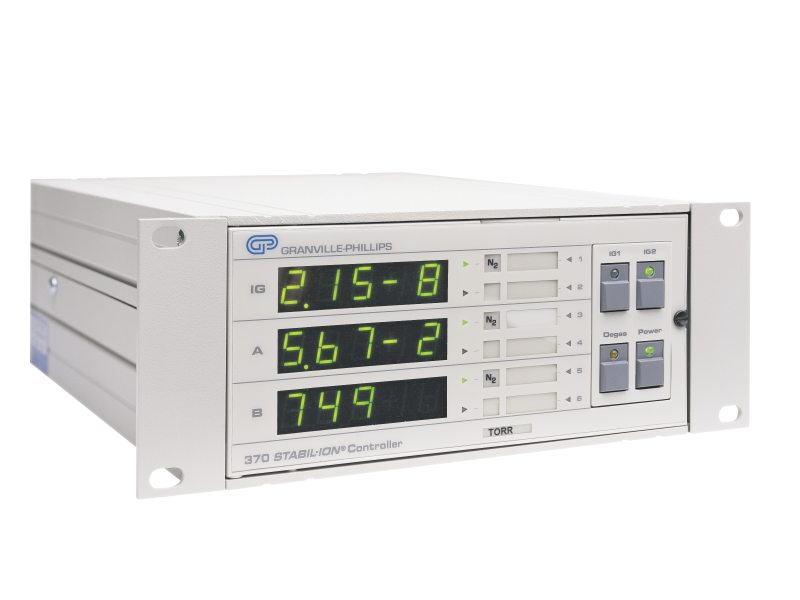

Vacuum Gauge Controller, Stabil-Ion, Torr Units, Dual Convectron, 120V

Technical Specs

  • Type
    Vacuum Gauge Controller
  • Display
    3 digits, plus exponent, green LED: Torr, mbar, or Pa
  • Display Range
    2 x 10-11 - 999 Torr
  • Units
    Torr
  • Compatible with
    370 Stabil-Ion and 275 Convectron Gauges
  • Electrical Plug
    North America & Japan 120 VAC
  • Power Requirements
    90 - 130 VAC, 50 - 60 Hz, 220 Watts maximum
  • Interface
    No
  • Relays
    0
  • Operating Temperature
    0 - 40°C ambient, non-condensing
  • Storage Temperature
    -40 - 70°C
  • Case Materials
    Aluminum extrusion, steel, plastic
  • Mounting
    Side by Side
  • Output
    1 volt/decade, logarithmic, 0 to 7 VDC, Analog
