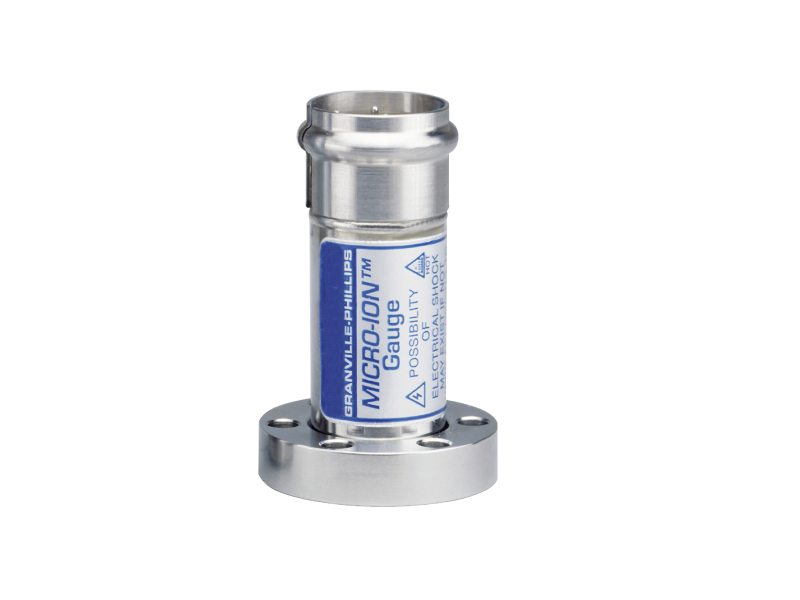

Vacuum Gauge, Bayard-Alpert, Hot Cathode, Tungsten, 5 x 10-10 to 5 x 10-2 Torr, 1.33 in. OD CF

Technical Specs

  • Type
    Vacuum Gauge
  • Sensor Type
    Bayard-Alpert Hot Cathode
  • Measurement Range
    5 x 10-10 to 5 x 10-2 Torr
  • Fitting Type
    1.33 in. CF
  • Filament
    Tungsten
  • Exposed Materials
    304 stainless steel, alumina, tantalum, tungsten, CuAg eutectic, Kovar®
  • Bake Out Temperature
    200°C max.
  • Internal Volume
    10.8 cm3 (0.66 in3) to port screen
  • X-ray Limit
    <3 x 10-10 Torr, <4 x 10-10 mbar, <4 x 10-8 Pa
