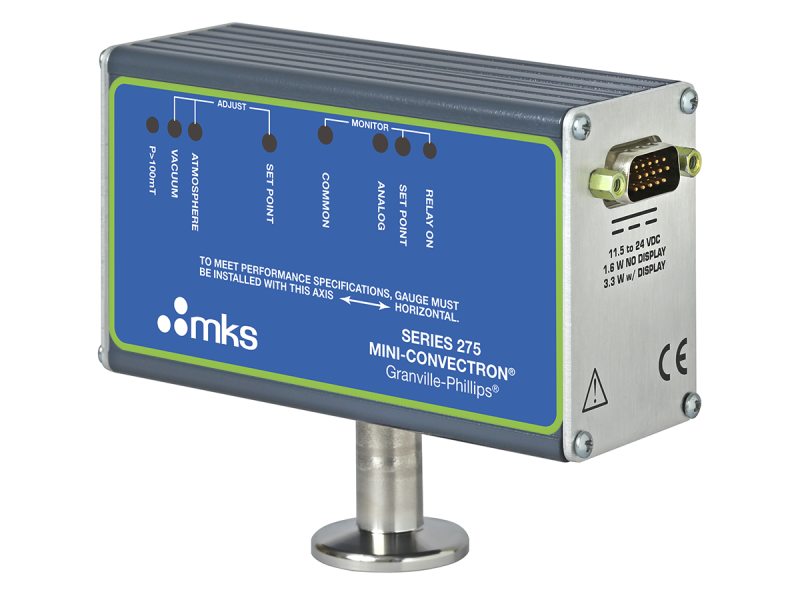

Pressure Gauge, Mini-Convectron, 0.125 in. NPT, Non-linear Analog, 2 Relays, Tungsten

Technical Specs

  • Absolute Measurement Range
    1.0 x 10-4 to 1000 Torr
  • Digital Communication
    No
  • Type
    Vacuum Module
  • Display
    No
  • Interface
    Analog
  • Relays
    2
  • Fitting Type
    0.125 in. NPT male
  • Installation Orientation
    Horizontal preferred
  • Set Point Range
    1x10-3 to 1000 Torr, 1x10-3 to 1300 mbar, 1x10-1 Pa to 130 kPa
  • Operating Temperature
    0 - 40°C ambient, non-condensing
  • Maximum Bakeout Temperature
    150°C with electronics removed
  • Storage Temperature
    -40 - 70°C
  • Analog Output
    0.375-5.659 VDC (0-1000 Torr Non-linear)
  • Power Requirements
    11.5 - 26.5 VDC, 0.1 Amps at 11.5 VDC, 1.6 Watts maximum
  • Internal Volume
    40 cm3 (2.5 in3)
  • Exposed Materials
    304 stainless steel, borosilicate glass, Kovar, alumina, NiFe alloy, polyimide
  • Electronic Casing and Flange
    Aluminum extrusion
  • Compliance
    CE
  • Filament
    Gold-plated Tungsten
  • Set Point Contact Rating
    1 Amps at 30 VDC resistive, AC non-inductive
  • Set Point Adjustments
    Value, direction, and hysteresis through software
  • Connectors
    15-pin subminiature-D male
  • Units
    Torr
  • Step Size at Minimum Pressure
    1 x 10-4 Torr, 1 x 10-4 mbar, 1 x 10-2 Pa
