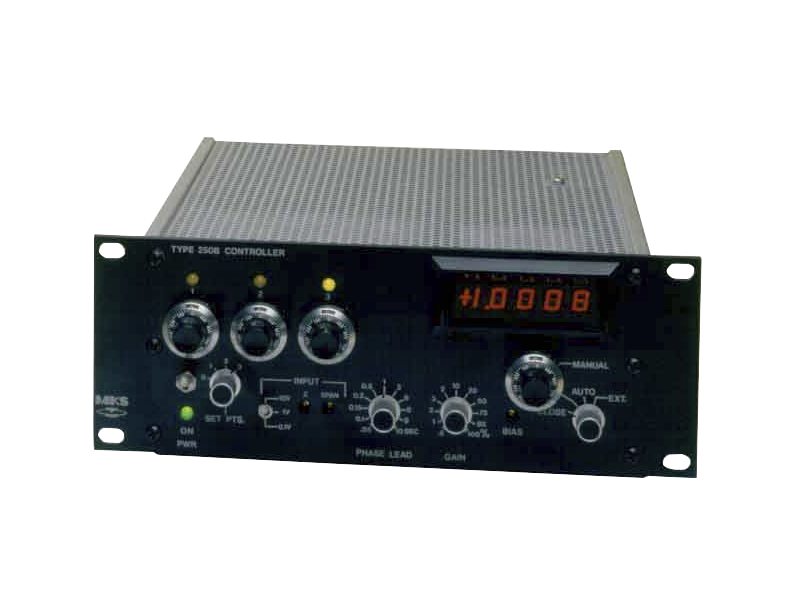

Pressure and Flow Control Module, Gas Inlet, 1 Set Point, LED Display

Technical Specs

  • Type
    Gas Inlet Pressure/Flow Control Module
  • For Use With
    148J, 248D, 154B Valves
  • Accuracy
    0.25% of Full Scale, 0.1, 1 or 10 VDC (user selectable)
  • Power Input
    115/230 VAC, 50-60 Hz, 50 Watts
  • Power Output
    ±15 VDC @ 250 mA (to power input transducers)
  • Pressure Control Signal
    0 - 10 VDC
  • Signal Input
    0 to ±0.1, 1 or 10 VDC (from transducer)
  • Output Signal
    0-5, 10 VDC into >10 kOhm load
  • Set Points
    1
  • Analog Set Point Input
    0 - 5 VDC into 40 kOhm load
  • Operating Temperature
    0 - 40°C
  • Display
    4.5 Place Digital Display
  • Input Impedance
    >200 kW
  • Mounting
    Bench-top or rack-mount
  • Valve Close or Auto Operation
    ground closure to select
  • Control Loop Tuning Phase
    Lead: 0.05 - 10 sec., Gain: 0.2 - 100%
  • Dimensions
    9.5 x 3.5 x 9.0 in. (241 x 89 x 229 mm)
