Vacuum Safety Valve, ISO-KF Flanges, NW50 Angle Ports, Viton Seals, 208 VAC/60 Hz
Model: 145-0050K-208V/60
Vacuum Safety Valve, ISO-KF Flanges, NW50 Angle Ports, Viton Seals, 208 VAC/60 Hz
Vacuum Safety Valve, ISO-KF Flanges, NW50 Angle Ports, Viton Seals, 208 VAC/60 Hz
Model: 145-0050K-208V/60
Overview
Overview

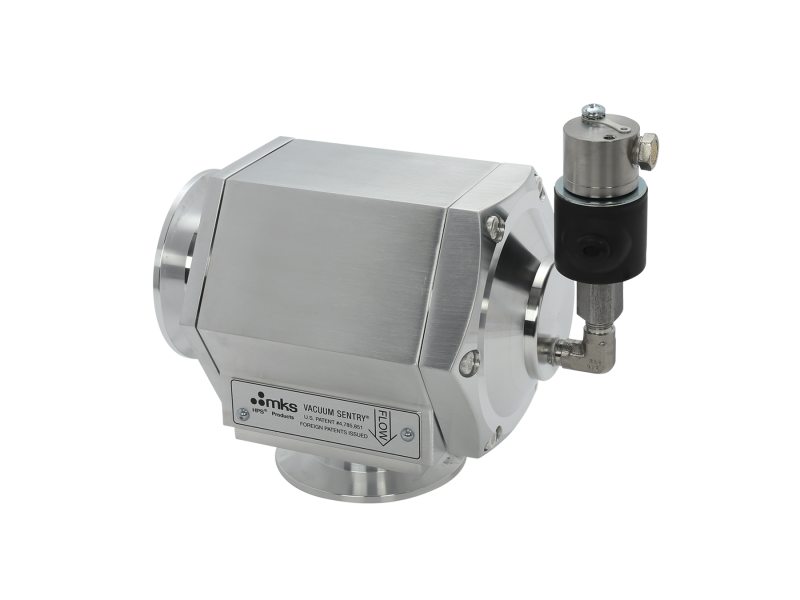

The Vacuum Sentry® 145-0050K-208V/60 Safety Valve has ISO-KF flanges, NW50 Angle ports, Viton seals, and a solenoid voltage of 208VAC. It is a patented safety valve that protects a vacuum system in the event of a power failure by isolating the vacuum system and venting the mechanical pump. A small orifice vents the mechanical pump slowly to atmospheric pressure for easy restart when power returns.
Technical Specs
-
TypeSafety Valve
-
Body ConfigurationAngle
-
Port SizeNW50
-
Flange TypeISO-KF
-
Helium Leak Rate<1 x 10-9 std cc/sec He
-
Body MaterialsAL 6061-T6
-
SealViton
-
Solenoid Voltage208 VAC/60 Hz
-
Closing Burst1 x 10-3 T-1
-
Power7 Watts @ 115 VAC
-
Piston MaterialAL 2024
-
Guide Pin MaterialViton
-
Closing Time30 ms
-
Venting Time10 s/l of vented volume
-
Solenoid Temperature Range0 - 55°C
-
Valve Temperature Range0 - 100°C
-
Weight4 lbs. (1.8 kg) (approximate)
Resources & Downloads
Literature
- 145 Vacuum Sentry Safety Valve (286.5 kB, PDF)
