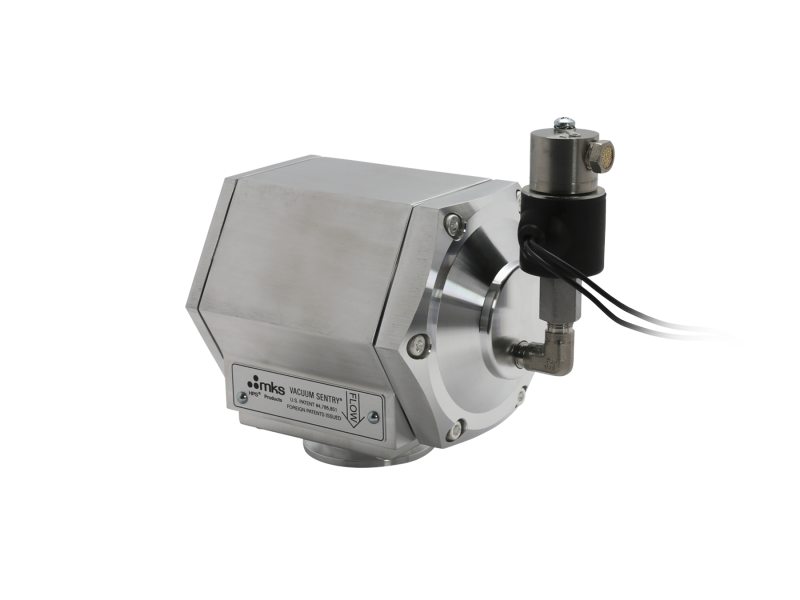

Vacuum Safety Valve, ISO-KF Flanges, NW40 Angle Ports, Viton Seals, 208 VAC/60 Hz

Technical Specs

  • Type
    Safety Valve
  • Body Configuration
    Angle
  • Port Size
    NW40
  • Flange Type
    ISO-KF
  • Helium Leak Rate
    <1 x 10-9 std cc/sec He
  • Body Materials
    AL 6061-T6
  • Seal
    Viton
  • Solenoid Voltage
    208 VAC/60 Hz
  • Closing Burst
    1 x 10-3 T-1
  • Power
    7 Watts @ 115 VAC
  • Piston Material
    AL 2024
  • Guide Pin Material
    Viton
  • Closing Time
    30 ms
  • Venting Time
    10 s/l of vented volume
  • Solenoid Temperature Range
    0 - 55°C
  • Valve Temperature Range
    0 - 100°C
  • Weight
    4 lbs. (1.8 kg) (approximate)
