CF Flange Adapter, 3.375 in. Flange to 0.25 inch Male VCR Fitting
Model: 100884032
CF Flange Adapter, 3.375 in. Flange to 0.25 inch Male VCR Fitting
CF Flange Adapter, 3.375 in. Flange to 0.25 inch Male VCR Fitting
Model: 100884032
Overview
Overview

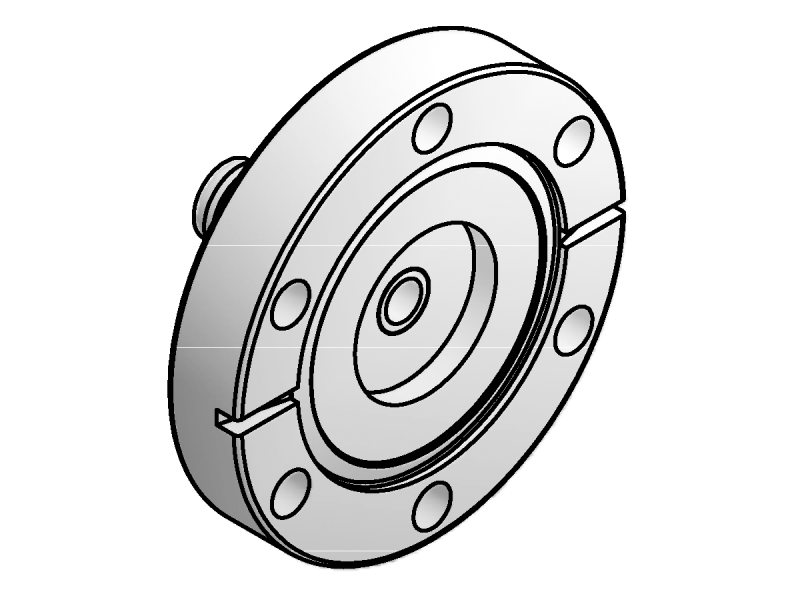

The 100884032 Flange Adapter is used to convert a 3 3/8 inch CF ultrahigh vacuum (UHV) flange to a 1/4 inch Male VCR fitting. This Series 88 CF flange adapter has thru-holes for bolting to same size CF vacuum flanges and allows VCR-compatible vacuum components to be used in a CF flange UHV piping application.
Technical Specs
-
Component TypeVCR Fitting Adapter
-
SeriesSeries 88
-
Flange TypeCF
-
Flange Size3.375 in.
-
Nonrotatable FlangesOne
-
Bolt HolesThru Holes
-
Material304 Stainless Steel
-
Length1.80 in. (46 mm)
-
Inner Diameter0.19 in. (5 mm)
-
VCR Fitting Size4 VCR Male
-

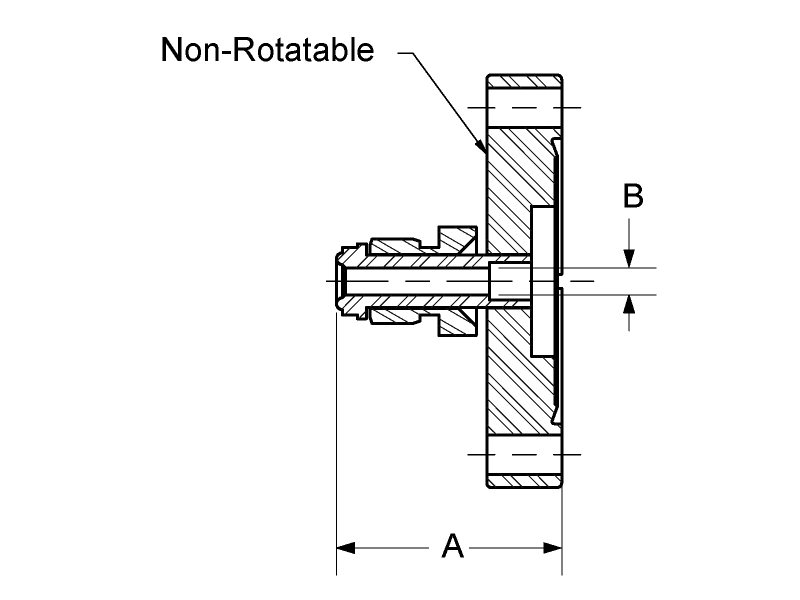

Dimension "A"1.80 in.
-
Dimension "B"0.19 in.
CF Flange Adapter, 3.375 in. Flange to 0.25 inch Male VCR Fitting
