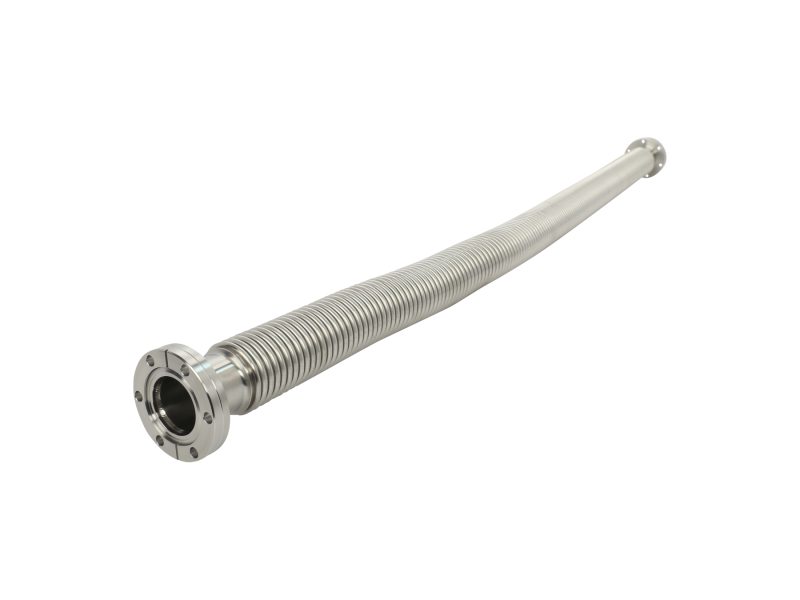

Metal Wall Vacuum Hose, 2.75 in. CF Flange, 25.0-41.9 in., 0.006 in. Wall

Technical Specs

  • Component Type
    Thin Wall Metal Hose
  • Series
    Series 88
  • Flange Type
    CF
  • Flange Size
    2.75 in.
  • Rotatable Flanges
    One
  • Nonrotatable Flanges
    One
  • Material
    321 Stainless Steel
  • Wall Thickness
    0.006 in. (0.152 mm)
  • Free Length
    41.9 in. (1064 mm)
  • Compressed Length
    25.0 in. (635 mm)
  • Static Bend Radius
    2.50 in. (64 mm)
  • Spring Rate
    2 lb/in.
  • Dimension "A"
    41.9 in.
  • Dimension "B"
    25.0 in.
