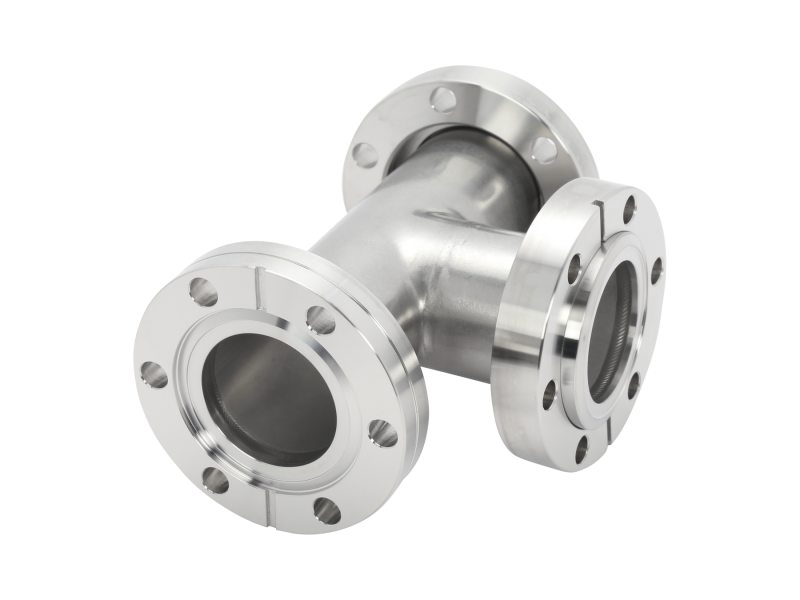

Tee Fitting, 2.125 inch CF Flange, Standard Modulus, 304 Stainless Steel

Technical Specs

  • Component Type
    Tee
  • Series
    Series 88
  • Flange Type
    CF
  • Flange Size
    2.125 in.
  • Tube OD
    1.0 in.
  • Rotatable Flanges
    Two
  • Nonrotatable Flanges
    One
  • Bolt Holes
    Thru Holes
  • Material
    304 Stainless Steel
  • Modulus
    2.06 in. (52 mm)
  • Length
    4.12 in. (105 mm)

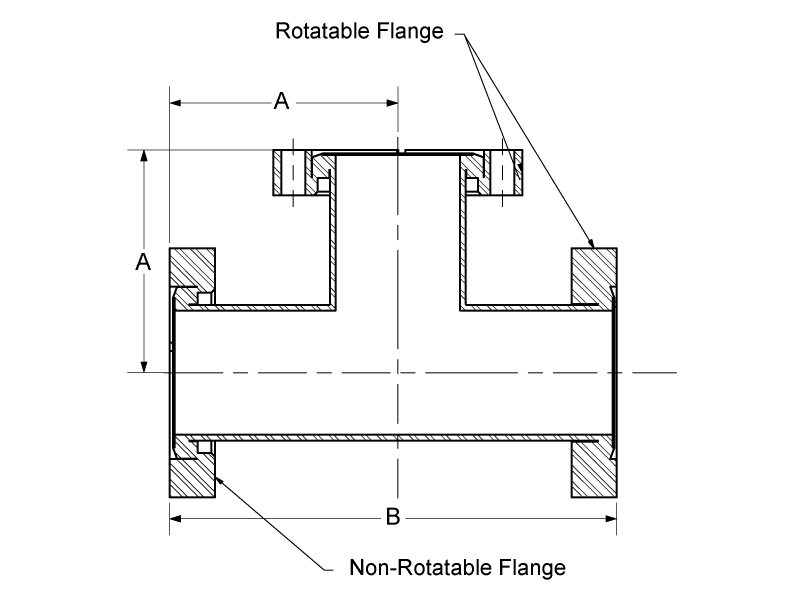

  • Dimension "A"
    2.06 in.
  • Dimension "B"
    4.12 in.
