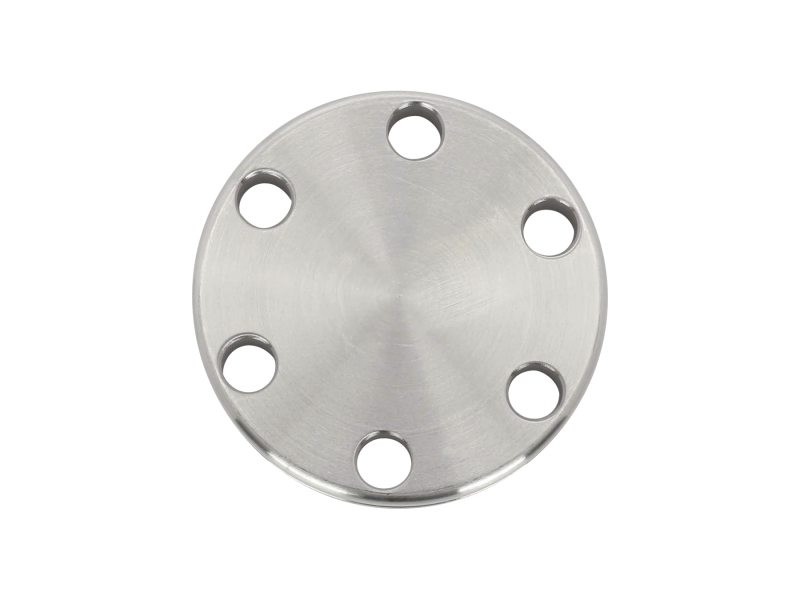

Blank CF Flange, 1.33 in., Nonrotatable, Thru Bolt Holes

Technical Specs

  • Component Type
    Nonrotatable Flange
  • Series
    Series 88
  • Flange Type
    CF
  • Flange Size
    1.33 in.
  • Tube OD
    Blank
  • Nonrotatable Flanges
    One
  • Bolt Holes
    Thru Holes
  • Number of Holes
    6
  • Thru Hole Diameter
    0.172 in. (4.3 mm)
  • Material
    304 Stainless Steel
  • Thickness
    0.30 in.
