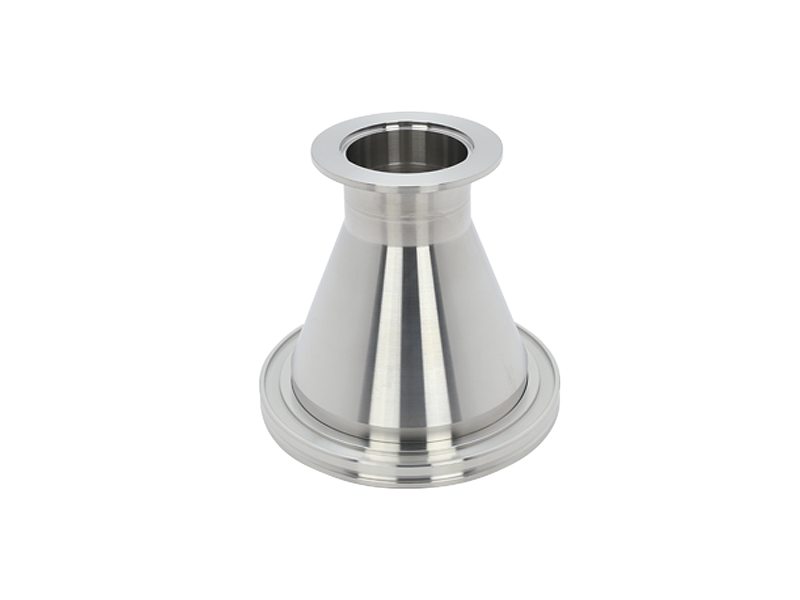

ISO-MF Flange Adapter, NW100 ISO-MF to NW50 ISO-KF, Conical Profile
Model: 100765018
ISO-MF Flange Adapter, NW100 ISO-MF to NW50 ISO-KF, Conical Profile
ISO-MF Flange Adapter, NW100 ISO-MF to NW50 ISO-KF, Conical Profile
Model: 100765018
Overview
Overview
The 100765018 ISO-MF Flange Adapter is used to adapt a NW100 size ISO-MF flange to a size NW50 ISO-KF vacuum flange. This Series 76 adapter features a high conductance conical profile reducer and is made of 304 stainless steel.
Technical Specs
-
Component TypeConical Adapter
-
SeriesSeries 76
-
Flange TypeISO-MF
-
Flange SizeNW100
-
Flange Size 2NW50 ISO-KF
-
Material304 Stainless Steel
-
Length4.64 in. (118 mm)
-
Inner Diameter3.83 in. (97 mm)
-
Inner Diameter 21.87 in. (47 mm)
-
Dimension "A"4.64 in.
-
Dimension "B"3.83 in.
-
Dimension "C"1.87 in.
