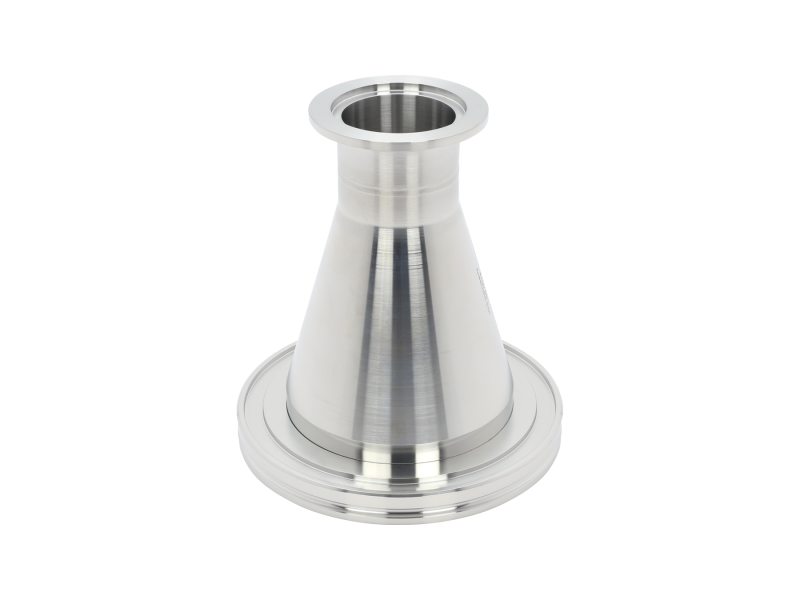

ISO-MF Flange Adapter, NW80 ISO-MF to NW40 ISO-KF, Conical Profile
Model: 100765016
ISO-MF Flange Adapter, NW80 ISO-MF to NW40 ISO-KF, Conical Profile
ISO-MF Flange Adapter, NW80 ISO-MF to NW40 ISO-KF, Conical Profile
Model: 100765016
Overview
Overview
The 100765016 ISO-MF Flange Adapter is used to adapt a NW80 size ISO-MF flange to a size NW40 ISO-KF vacuum flange. This Series 76 adapter features a high conductance conical profile reducer and is made of 304 stainless steel.
Technical Specs
-
Component TypeConical Adapter
-
SeriesSeries 76
-
Flange TypeISO-MF
-
Flange SizeNW80
-
Flange Size 2NW40 ISO-KF
-
Material304 Stainless Steel
-
Length4.64 in. (118 mm)
-
Inner Diameter2.87 in. (73 mm)
-
Inner Diameter 21.37 in. (35 mm)
-
Dimension "A"4.64 in.
-
Dimension "B"2.87 in.
-
Dimension "C"1.37 in.
