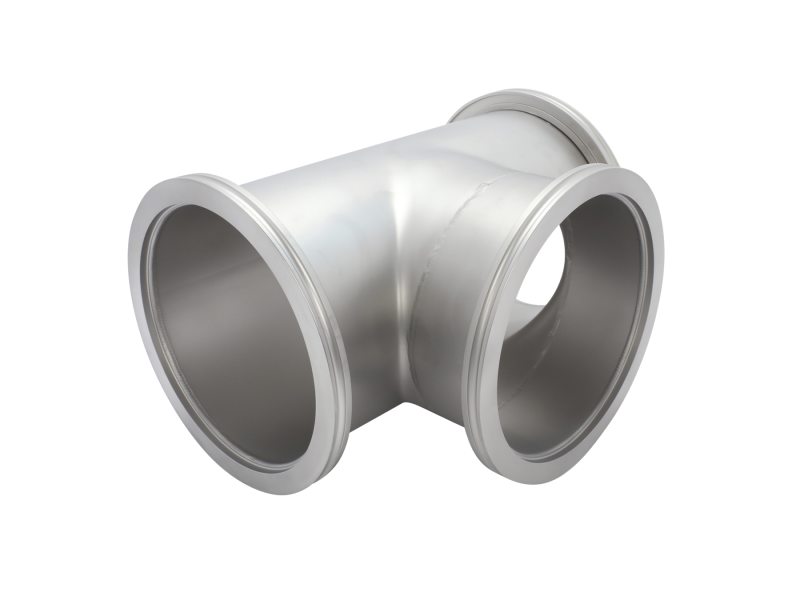

Tee Fitting, NW320 Size ISO-MF Vacuum Flange, 304 Stainless Steel

Technical Specs

  • Component Type
    Tee
  • Series
    Series 76
  • Flange Type
    ISO-MF
  • Flange Size
    NW320
  • Material
    304 Stainless Steel
  • Modulus
    12.60 in. (320 mm)
  • Length
    25.20 in. (640 mm)

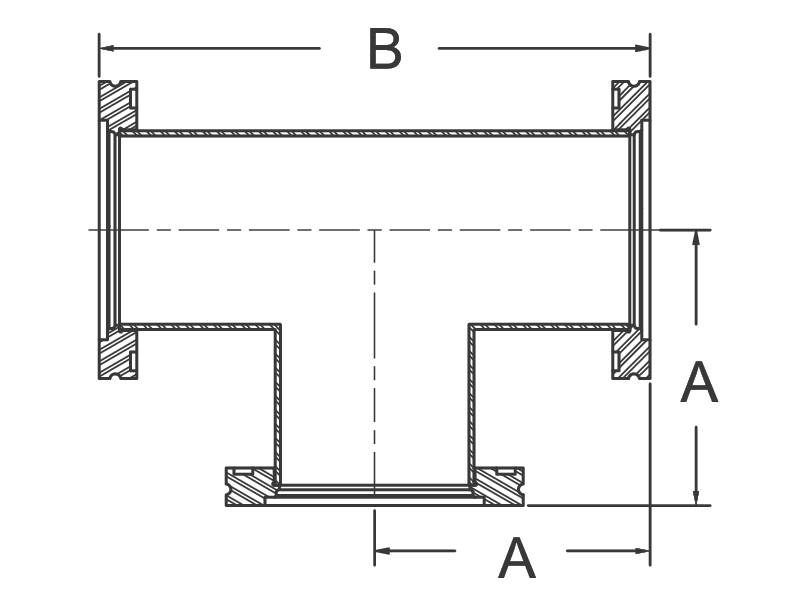

  • Dimension "A"
    12.60 in.
  • Dimension "B"
    25.20 in.
