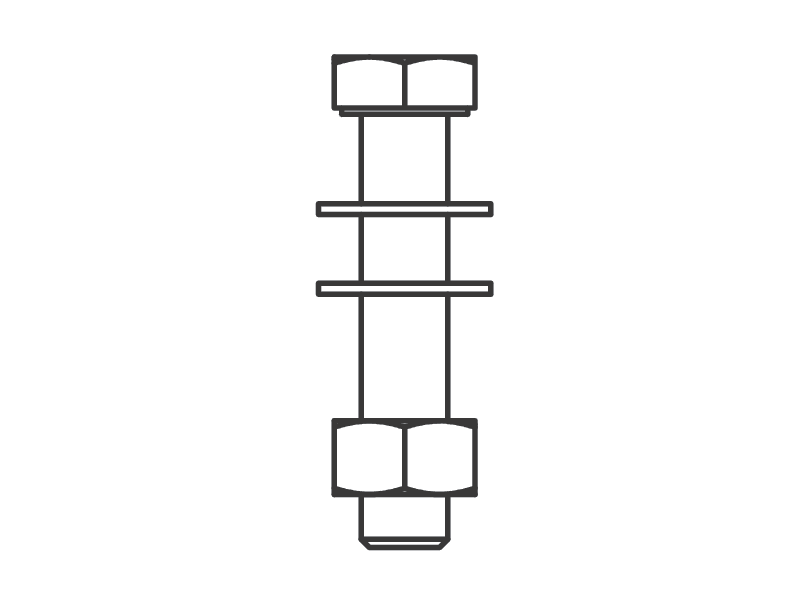

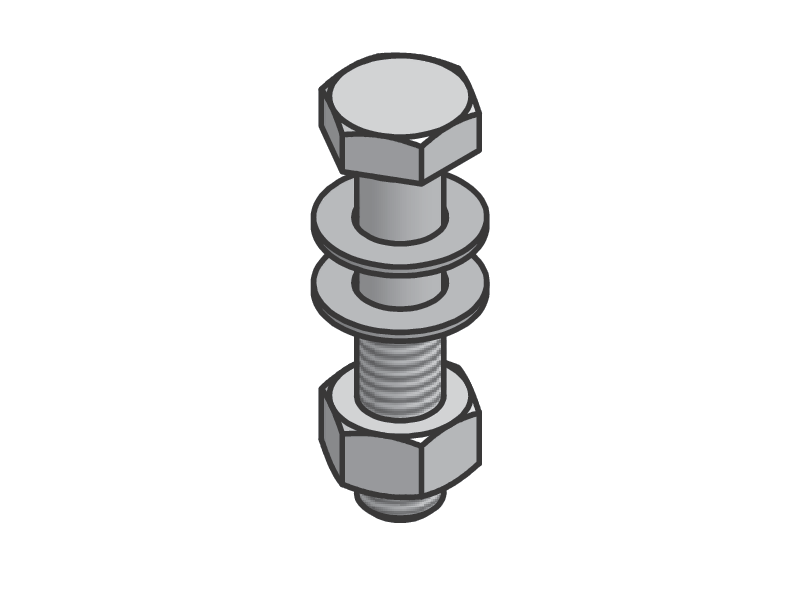

The 100761220 Flange Bolt and Nut Set is designed for joining two size NW200 or NW250 ISO-BF bolted flanges. This set of 304 stainless steel hardware includes (12) M10 threaded 50 mm bolts with 1.50 mm pitch, (12) M10 nuts, and (24) M10 washers which is what is required to join NW200 or NW250 vacuum flanges. Series 76 ISO-BF flanges and seals are designed to be tightened to metal to metal contact. It is important that the bolts not be over tightened or warping of the flanges could result. The torque rating for flange bolts is 7 to 10 pounds per foot.
Additional CAD file downloads are not available for this product.
100761220 - Drawings
Additional drawings are not available for this product.
100761220
Sign In
Password Reset
Enter your email address below to reset your account password.
Password Reset
Email Verification Required
Cart Items Updated
Remove Product
Remove this product from your comparison list?
Check Order Status
Provide an order number and postal code to check the status of an order or download an invoice for an order that has shipped. Login to view your complete order history.
Sign In Required
To access this and other valuable technical resources, please sign in or register for a new online account.
Add to Cart
Bolt and Nut Set, NW200 or NW250 ISO-BF Flange, M10 x 50 mm, Set of 12
