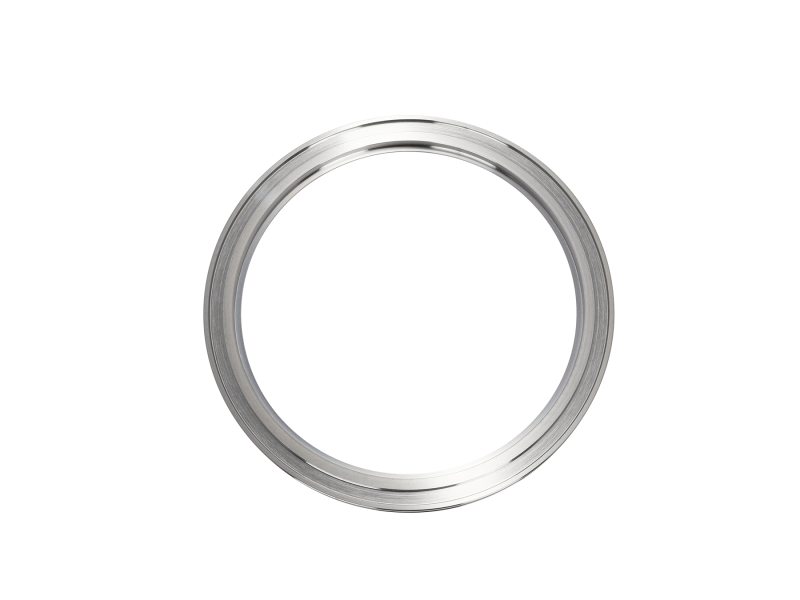

ISO-MF Bored Vacuum Flange, NW160, 6.0 in. Bore, 304 Stainless Steel

Technical Specs

  • Component Type
    Bored Flange
  • Series
    Series 76
  • Flange Type
    ISO-MF
  • Flange Size
    NW160
  • Tube OD
    6.0 in.
  • Material
    304 Stainless Steel
  • Inner Diameter
    5.83 in. (146 mm)
  • Bore Diameter
    6.00 in. (152.4 mm)
  • Bore Depth
    0.22 in. (6 mm)
  • Bore
    6.0 in.

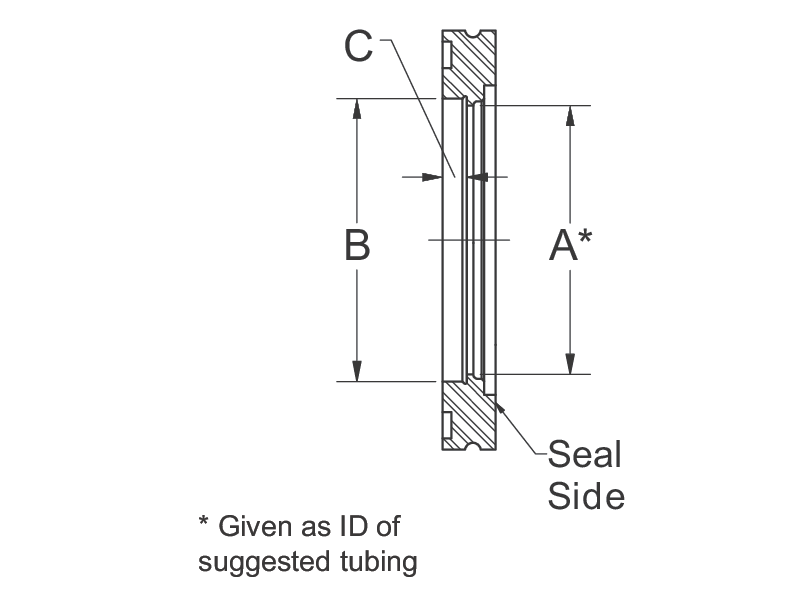

  • Dimension "A"
    5.83 in.
  • Dimension "B"
    6.00 in.
  • Dimension "C"
    0.22 in.
