Metal Wall Vacuum Hose, NW50 ISO-KF, 612 mm Length, 0.15 mm Hose Wall
Model: 100319811
Metal Wall Vacuum Hose, NW50 ISO-KF, 612 mm Length, 0.15 mm Hose Wall
Model: 100319811
Overview
Overview

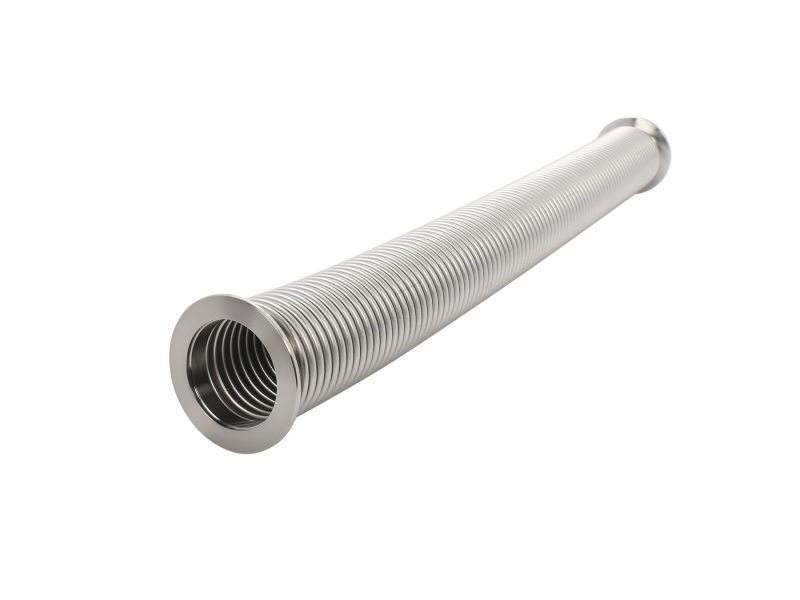

The 100319811 Thin Metal Wall Vacuum Hose is 24.08 inch (612 mm) in length with size NW50 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 3 1/4 inch static bend radius and can be compressed to a 18.12 in. (460 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Technical Specs
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW50
- Wall Thickness0.006 in. (0.15 mm)
- Free Length24.08 in. (612 mm)
- Compressed Length18.12 in. (460 mm)
- Static Bend Radius3.25 in
- Spring Rate5 lb/in.
- Dimension "A"24.08 in.
- Dimension "B"18.12 in.
