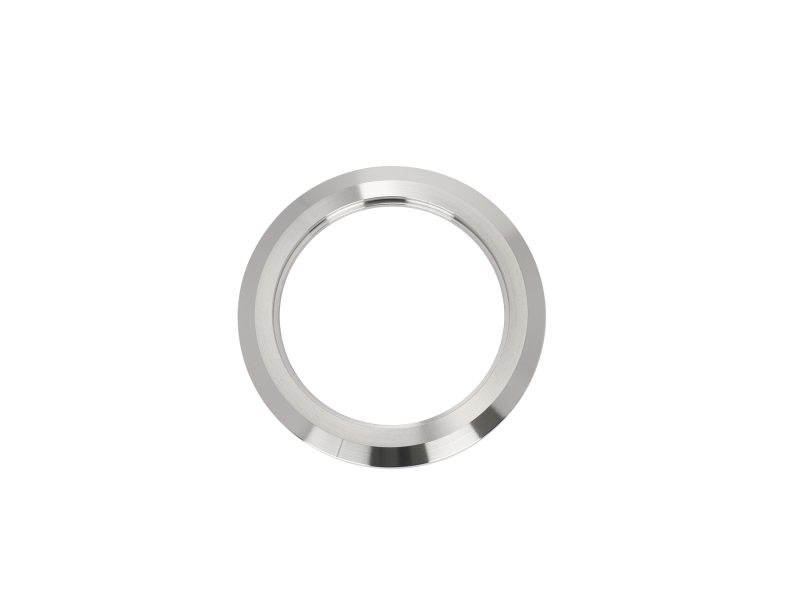

Bored Blank Flange, NW100 ISO-KF Flange, 4 in. Tube OD Bore, 304 S.S.

Technical Specs

  • Component Type
    Bored Blank Flange
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF
  • Flange Size
    NW100
  • Tube OD
    4.0 in.
  • Thickness
    0.43 in. (11 mm)
  • Inner Diameter
    3.87 in. (98 mm)
  • Bore Diameter
    4.02 in. (102 mm)
  • Outer Diameter
    5.28 in. (134 mm)
  • Dimension "A"
    0.20 in.
  • Dimension "B"
    4.02 in.
  • Dimension "C"
    5.28 in.
