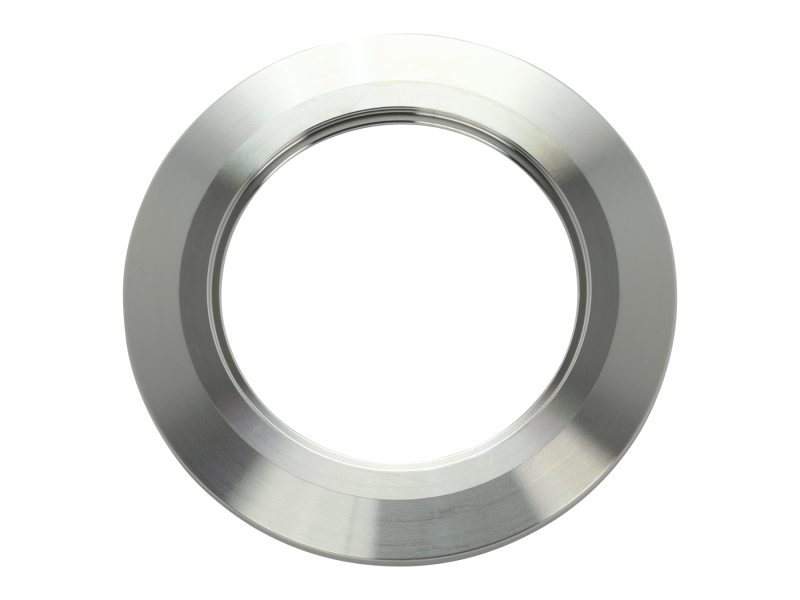

Bored Blank Flange, NW50 ISO-KF Flange, 2 in. Tube OD Bore, 304 S.S.

Technical Specs

  • Component Type
    Bored Blank Flange
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF
  • Flange Size
    NW50
  • Tube OD
    2.0 in.
  • Thickness
    0.20 in. (5 mm)
  • Inner Diameter
    1.89 in. (48 mm)
  • Bore Diameter
    2.02 in. (51 mm)

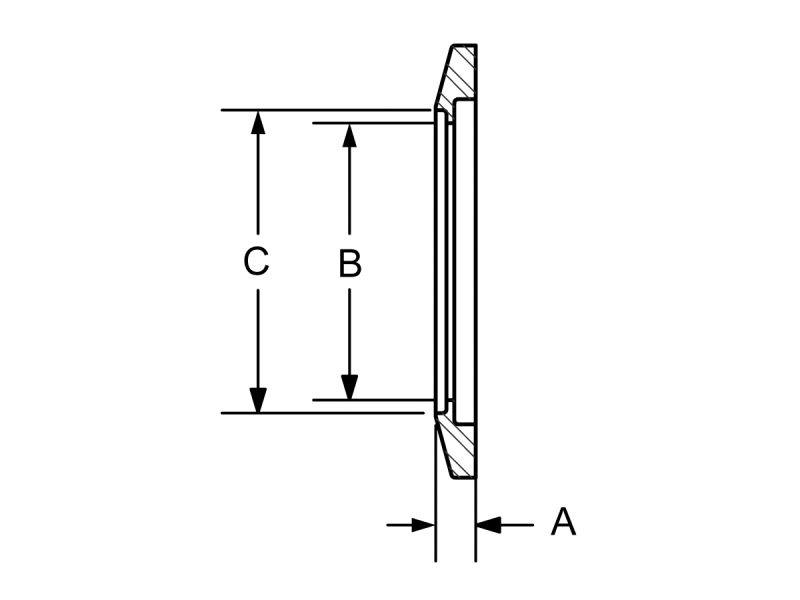

  • Dimension "A"
    0.20 in.
  • Dimension "B"
    1.89 in.
  • Dimension "C"
    2.02 in.
