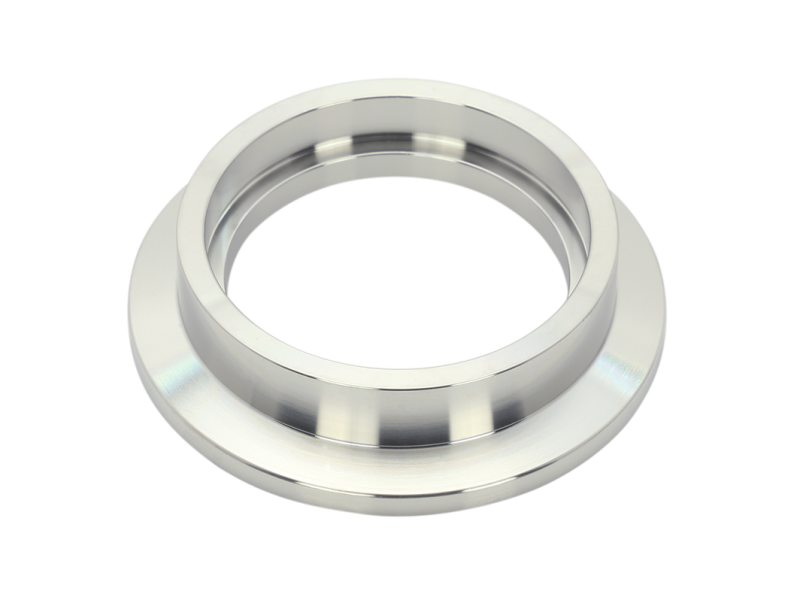

ISO-KF Weld Socket Flange, NW40, 1.5 in. Tube O.D., 304 Stainless Steel

Technical Specs

  • Component Type
    Weld Socket Flange
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF
  • Flange Size
    NW40
  • Tube OD
    1.5 in.
  • Length
    0.50 in. (12.7 mm)
  • Inner Diameter
    1.37 in. (35 mm)
  • Bore Diameter
    1.50 in. (38.1 mm)
  • Outer Diameter
    1.75 in. (44 mm)

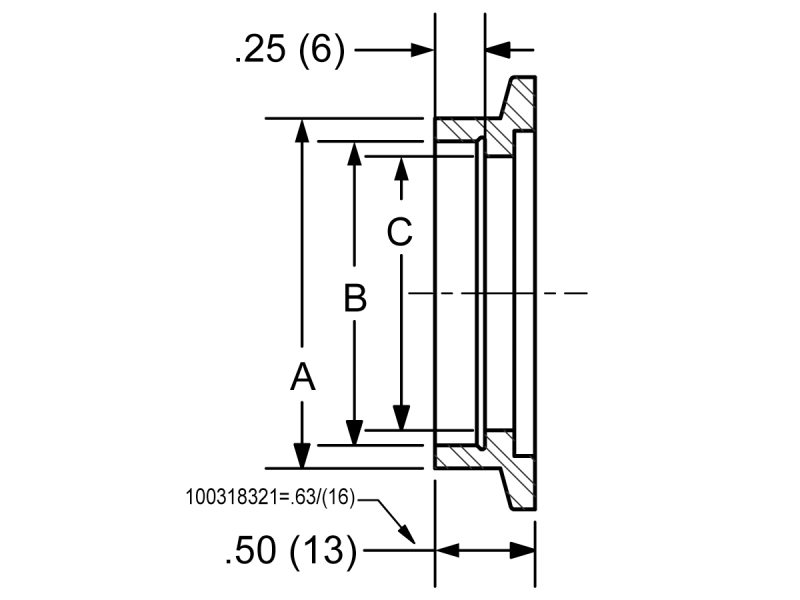

  • Dimension "A"
    1.75 in.
  • Dimension "B"
    1.50 in.
  • Dimension "C"
    1.37 in.
