Metal Wall Vacuum Hose, NW40 ISO-KF, 1000 mm Length, 0.15 mm Hose Wall
Model: 100317445
Metal Wall Vacuum Hose, NW40 ISO-KF, 1000 mm Length, 0.15 mm Hose Wall
Model: 100317445
Overview
Overview

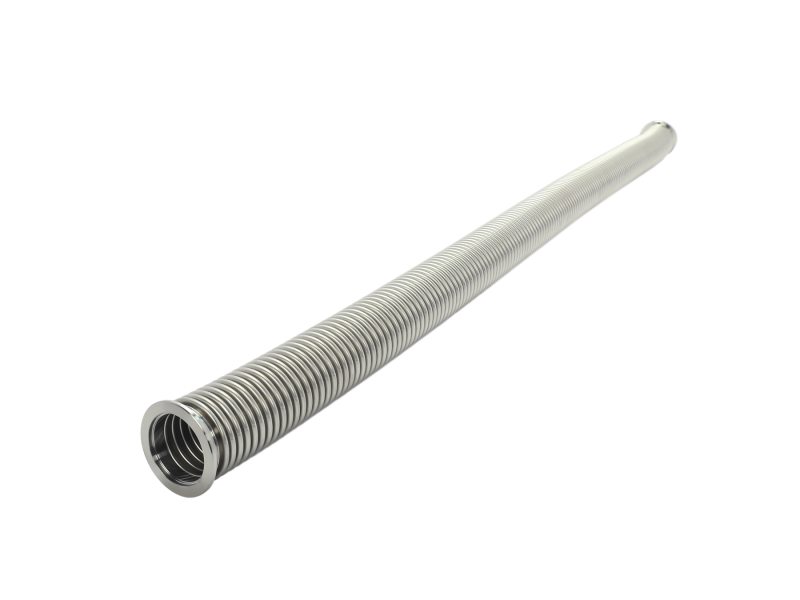

The 100317445 Thin Metal Wall Vacuum Hose is 39.40 inch (1000 mm) in length with size NW40 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 2 1/2 inch static bend radius and can be compressed to a 22.5 in. (571 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Technical Specs
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW40
- Wall Thickness0.006 in. (0.15 mm)
- Free Length39.40 in. (1000 mm)
- Compressed Length22.50 in. (571 mm)
- Static Bend Radius2.5 in.
- Spring Rate1.9 lb/in.
- Dimension "A"39.40 in.
- Dimension "B"22.50 in.
