Metal Wall Vacuum Hose, NW50 ISO-KF, 500 mm Length, 0.15 mm Hose Wall
Model: 100317426
Metal Wall Vacuum Hose, NW50 ISO-KF, 500 mm Length, 0.15 mm Hose Wall
Model: 100317426
Overview
Overview

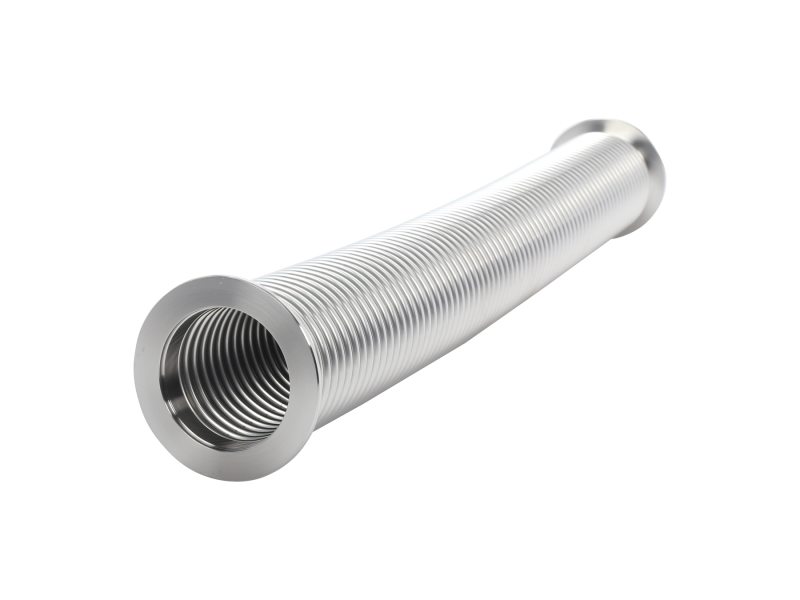

The 100317426 Thin Metal Wall Vacuum Hose is 19.69 inch (500 mm) in length with size NW50 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 3 1/4 inch static bend radius and can be compressed to a 13.5 in. (342 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Technical Specs
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW50
- Wall Thickness0.006 in.15 mm)
- Free Length19.69 in. (500 mm)
- Compressed Length13.50 in. (342 mm)
- Static Bend Radius3.25 in.
- Spring Rate5.9 lb/in.
- Dimension "A"19.69 in.
- Dimension "B"13.50 in.
