Metal Wall Vacuum Hose, NW16 ISO-KF, 500 mm Length, 0.15 mm Hose Wall
Model: 100317421
Metal Wall Vacuum Hose, NW16 ISO-KF, 500 mm Length, 0.15 mm Hose Wall
Metal Wall Vacuum Hose, NW16 ISO-KF, 500 mm Length, 0.15 mm Hose Wall
Model: 100317421
Overview
Overview

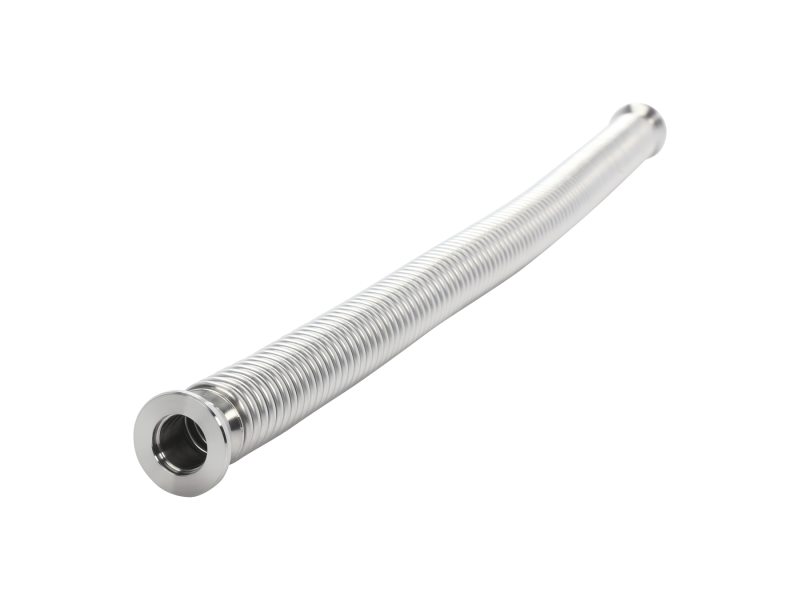

The 100317421 Thin Metal Wall Vacuum Hose is 19.69 inch (500 mm) in length with size NW16 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 1 5/8 inch static bend radius and can be compressed to a 12.3 in. (313 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Technical Specs
-
Component TypeMetal Wall Vacuum Hose
-
SeriesSeries 31
-
MaterialStainless Steel
-
Flange TypeISO-KF
-
Flange SizeNW16
-
Wall Thickness0.006 in. (0.15 mm)
-
Free Length19.69 in. (500 mm)
-
Compressed Length12.30 in. (313 mm)
-
Static Bend Radius1.625 in.
-
Spring Rate12 lb/in.
-
Dimension "A"19.69 in.
-
Dimension "B"12.30 in.
