Overpressure Ring, NW40 ISO-KF Flange, 75 psig, 304 Stainless Steel

Technical Specs

  • Component Type
    Overpressure Ring
  • Series
    Series 31
  • Material
    Stainless Steel
  • Flange Type
    ISO-KF
  • Flange Size
    NW40
  • Width
    0.35 in. (9 mm)
  • Inner Diameter
    2.17 in. (55 mm)
  • Outer Diameter
    2.25 in. (57 mm)
  • Maximum Pressure
    75 psig

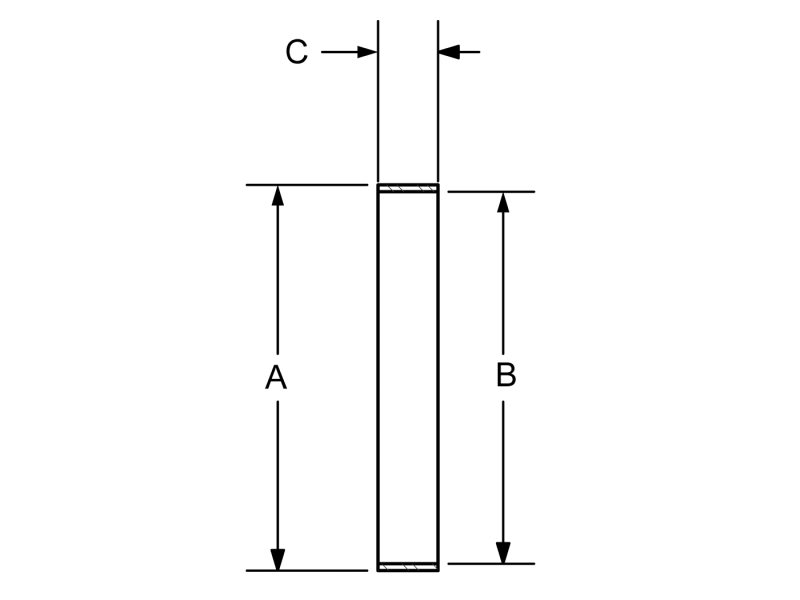

  • Dimension "A"
    2.25 in.
  • Dimension "B"
    2.17 in.
  • Dimension "C"
    0.35 in.
