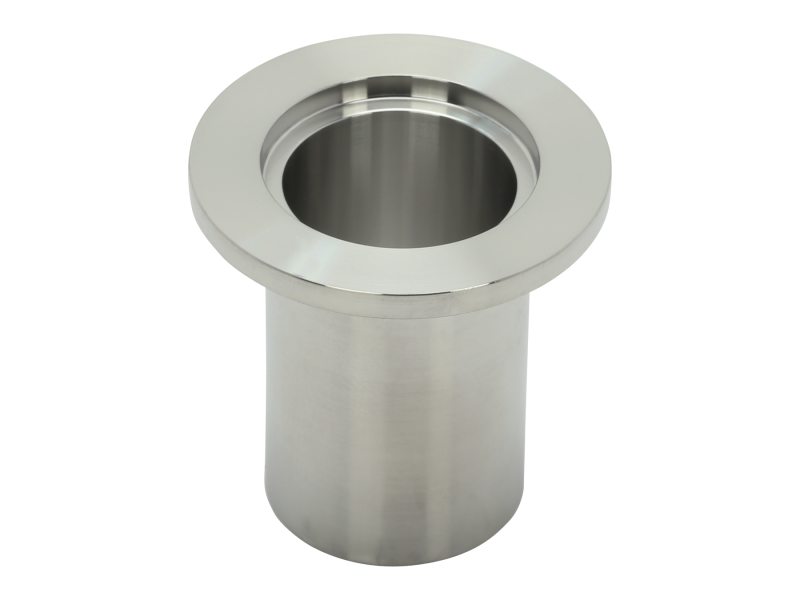

ISO-KF Weld Stub Flange, NW25, 1.0 in. Tube OD, 304 Stainless Steel

Technical Specs

  • Component Type
    Weld Stub Flange
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF
  • Flange Size
    NW25
  • Tube OD
    1.0 in.
  • Wall Thickness
    0.065 in. (1.7 mm)
  • Length
    1.58 in. (40 mm)
  • Dimension "A"
    1.00 in.
  • Dimension "B"
    0.065 in.
  • Dimension "C"
    1.58 in.
