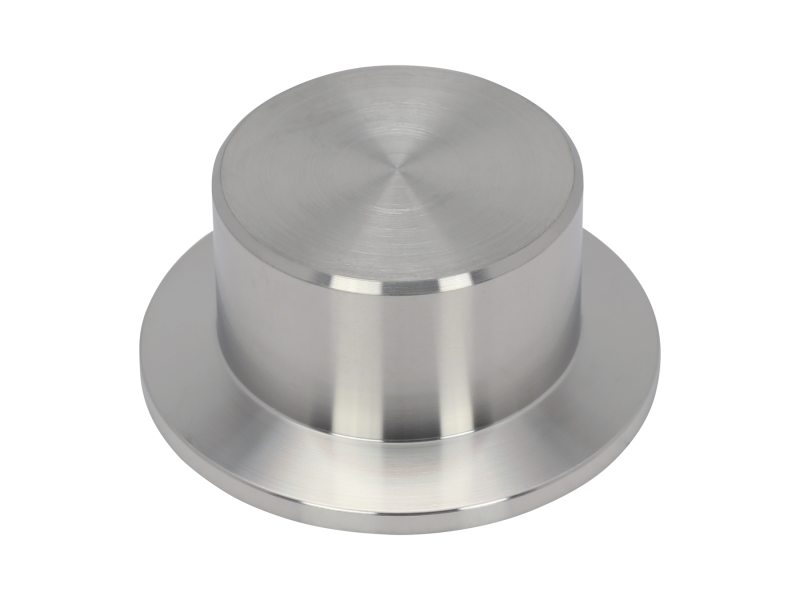

Blank Weld Stub Flange, ISO-KF Size NW40, 1.0 inch Length, 304 S.S.

Technical Specs

  • Component Type
    Unbored Weld Stub Flange
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF
  • Flange Size
    NW40
  • Tube OD
    1.5 in.
  • Length
    1.0 in. (25.4 mm)

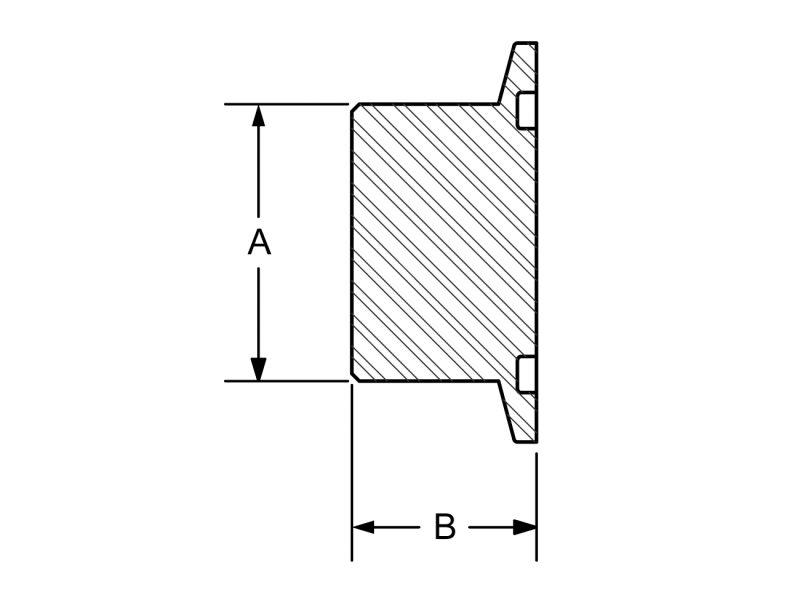

  • Dimension "A"
    1.5 in.
  • Dimension "B"
    1.00 in.
