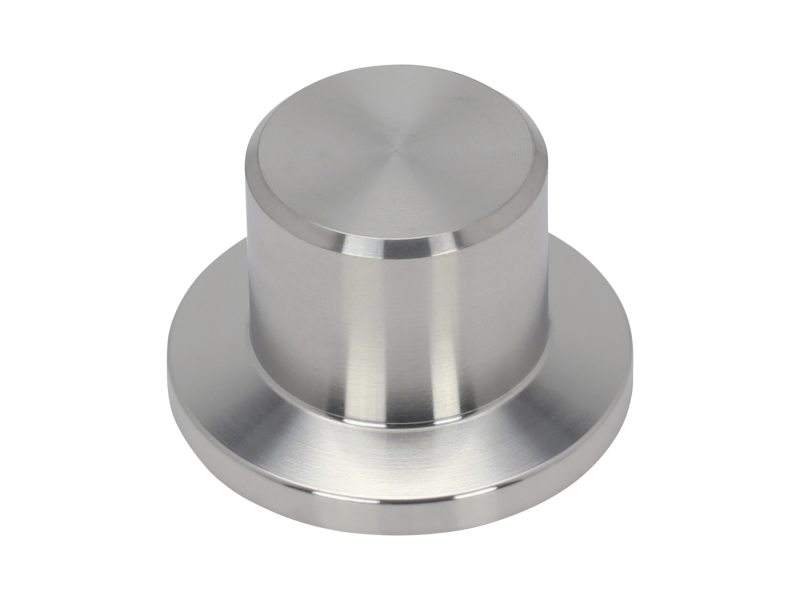

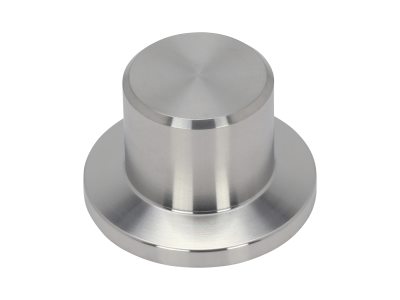

Blank Weld Stub Flange, ISO-KF Size NW16, 0.75 inch Length, 304 S.S.

Technical Specs

  • Component Type
    Unbored Weld Stub Flange
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF
  • Flange Size
    NW16
  • Tube OD
    0.75 in.
  • Length
    0.75 in. (19.05 mm)

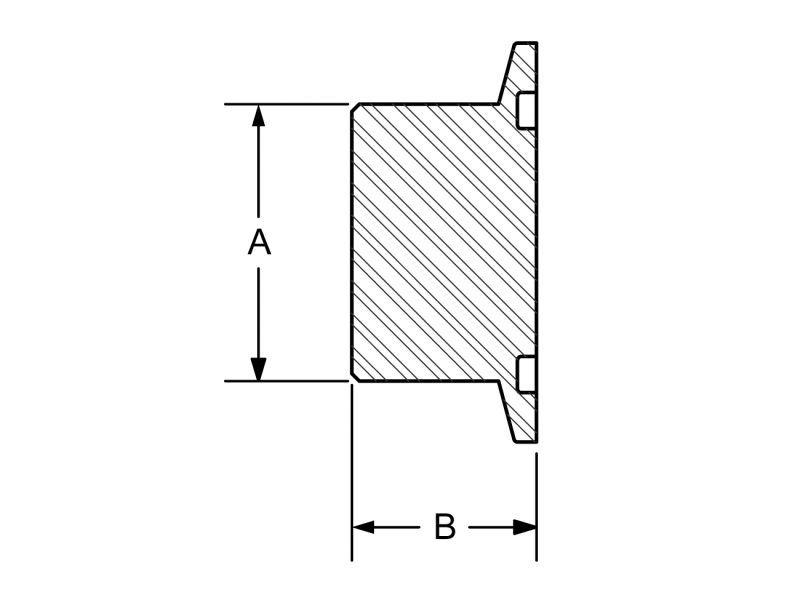

  • Dimension "A"
    0.75 in.
  • Dimension "B"
    0.75 in.
