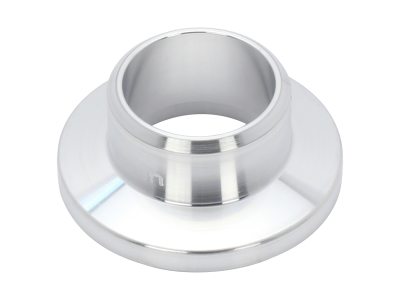

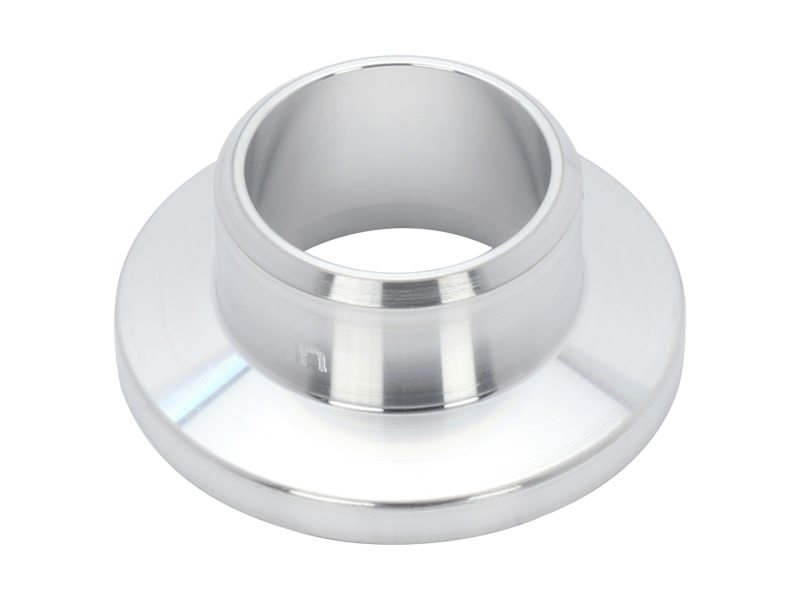

ISO-KF Weld Stub Flange, NW16, 0.75 in. Tube OD, 0.5 in. Length, Aluminum

Technical Specs

  • Component Type
    Weld Stub Flange
  • Series
    Series 31
  • Material
    Aluminum
  • Flange Type
    ISO-KF
  • Flange Size
    NW16
  • Tube OD
    0.75 in.
  • Wall Thickness
    0.065 in. (1.7 mm)
  • Length
    0.50 in. (12.7 mm)
  • Dimension "A"
    0.75 in.
  • Dimension "B"
    0.065 in.
  • Dimension "C"
    0.50 in.
