Overview

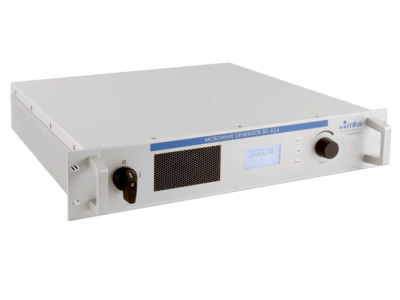

The SG 624 is a water cooled, solid state, rack-mountable, microwave generator with adjustable power up to 550 Watts with a frequency range of 2400-2500 MHz and uses the latest power amplifier technology resulting in excellent operational efficiency.

The SG 624 features exceptional control functionality, including precise power and frequency control, making it ideal for science and research applications. This state-of-the-art microwave generator uses the most powerful high frequency transistors, enabling a breakthrough performance in modern microwave heating technology, providing a stable output frequency that can be tuned if needed.

The unit has been designed as a stand alone microwave generator and can be controlled via manual commands using the front panel interface or remotely through standardized PLC control signals. A USB interface is provided on the rear panel to allow upgrading of internal firmware or monitoring/controlling the microwave power supply from a standard Windows®-based PC. The microwave output power interface uses a standard coax 7/16 inch socket. It includes built-in circulator and passive load to withstand 100% reverse power condition, and offers compensated monitor signals of the forward and reverse power. It is powered by 230 V line, while operation is controlled by an external command at +24 VDC (ON/OFF) and by a 0-10 Volt signal to adjust the forward power.

Smaller form factor with solid state design
Coax output connector
Capable of frequency tuning the output between 2400-2500 MHz
19 inch rack-mountable unit for easy integration
Remote and manual operation for easy setup, operation and troubleshooting

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		SG 624 Solid State Microwave Generator, 500 W, 2400-2500 MHz Contact Us	SG 624 Solid State Microwave Generator, 500 W, 2400-2500 MHz	UNIVERSAL	0.0	1.0	0.0		0.0	Contact Us

Show All

Specifications

Type

Solid State Microwave Generator
Maximum Power Output

550 Watts
Frequency

2450 MHz (nominal)
2400-2500 MHz (adjustable range)
Efficiency

Near 60%
Ambient Temperature

35°C (95°F)
Cooling

Forced air
Coaxial Cable Output Connector

7/16 inch female
Front Panel

Rotary 0-1 switch
LCD graphic display showing the main info to the user
3 Button keyboard and a rotating knob to scroll, select and adjust the various parameters

Rear Panel

3 pin socket for main line supply
25 pin D type connector for signals
USB port
7/16" coax output connector
Fieldbus interface with a connector depending on type of bus (for version with Bus)
Version

Display (Version 2) that includes the functionality described above
Bus (Version 1) that may carry an Ethernet-like fieldbus, Modbus® TCP/IP, Profinet, etc.
Accessories

Coax dual directional coupler, passive load, RF cable, and coax to waveguide transition are available to complete the installation.
Input Power

200-260 V, 50/60 Hz
Weight

10 kg (23 lbs)
Dimensions

Height, Front Panel: 88.5 mm (2 U: 3.48 in.)
Width, Rack: 440 mm (17.32 in.)
Width, Front Panel: 483 mm (19.02 in.)
Length, Rack: 451.5 mm (17.78 in.)
Compliance

Low Voltage Directive 2014/35/UE
EMC Directive 2014/30/UE
and the following norms:
EN 61010-1: 2011-3
EN61000-6-4: 2007-11
EN61000-6-2: 2006-10
EN61000-4-3: 2007-04
EN61000-4-6: 2006-10
