SG 1024 Solid State Microwave Generator, 1000 Watts, 2400-2500 MHz
Overview

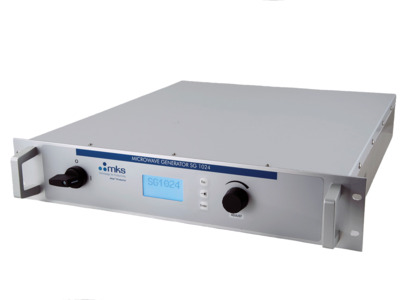

The SG 1024 is a water-cooled, solid state, rack mountable microwave generator with adjustable power and frequency. It is the first solid state microwave generator on the market to offer a power level of 1 kW @ 2450 MHz, ±50 MHz, suitable for industrial application. The SG 1024 features exceptional control functionality, including precise power and frequency control. This state of the art generator uses the latest and most powerful high frequency transistors, enabling a breakthrough performance in modern microwave heating technology, providing a stable output frequency, as well as control over the ISM band between 2400 to 2500 MHz for tuning, if needed.
The unit has been designed as a stand alone microwave generator and can be controlled via manual commands, using the front panel interface, or remotely through standardized PLC control signals. A USB interface is provided on the panel to allow upgrading of internal firmware or monitoring/controlling the generator from a standard Windows® based PC. The microwave output power is on a standard coax 7/16 socket.
- Built-in circulator and passive load to withstand 100% reverse power condition
- Capable of frequency tuning the output between 2400-2500 MHz
- Remote and manual operation for easy setup, operation and troubleshooting
- Advanced high-frequency transistor design for precise power control and stability
Specifications
-
TypeSolid State Microwave Generator
-
Maximum Power Output1000 W
-
Frequency2450 MHz (nominal)
2400-2500 MHz (adjustable range) -
Ambient Temperature40°C (104°F)
-
CoolingWater
-
Coaxial Cable Output Connector7/16 inch female
-
Front PanelRotary 0-1 switch
LCD graphic display showing the main info to the user
3 Button keyboard and a rotating knob to scroll, select and adjust the various parameters -
Rear Panel3 pin socket for main line supply
25 pin D type connector for signals
USB port
7/16" coax output connector
Fieldbus interface with a connector depending on type of bus (for version with Bus) -
VersionBasic (version 0): Includes the functionality described above
Bus (version 1): May carry a high speed fieldbus, Ethernet like (Powerlink, Modbus TCP/IP, EtherCAT, etc.)
A set of accessories, like a coax dual directional coupler, passive load, RF cable, and coax to waveguide transition are available to complete the installation. -
Input Power230V ±15%, 50/60 Hz
-
Weight22.5 kg (49 lbs)
-
DimensionsHeight, Front Panel: 90 mm (2U: 3.5 in.)
Width, Rack: 445 mm (17.5 in.)
Width, Front Panel: 480 mm (19 in.)
Length, Rack: 532 mm (21 in.)
Resources
Drawings & CADs
- SG 1024 Dimensional Drawing (1.3 MB, PDF)
