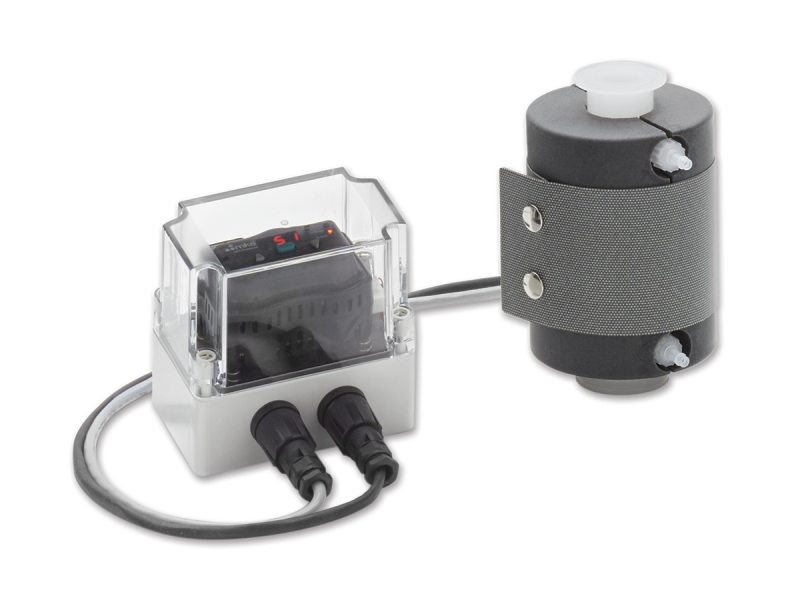

Series 48 Heaters for Single-Use Filters with NEMA 4 Control Unit Enclosures
Overview
Series 48 Heaters for Single-Use Filters with NEMA 4 Control Unit Enclosures are a cost-effective and low maintenance solution for biopharmaceutical processes requiring superior thermal control. Series 48 heaters prevent vapor condensation in single-use capsule vent and process filters. Series 48 heaters offer tight temperature control and advanced functionality, while complying with strict safety regulations.
- Specially designed for optimum performance and increased thermal uniformity
- Thermocouple embedded in heater mat for tight temperature control
- Corrosion-resistant stainless steel snaps for easy installation or removal
- Designed for quick installation and rapid change over during filter replacement
- User-adjustable and resettable temperature set-points for advanced process control
Products
Configuration Options
Specifications
-
SeriesSeries 48
-
Set Point50°C
-
For Use WithSingle-use Filter Housing
-
Foam Thickness0.5 inches (12.7 mm)
-
Heating Element MaterialTeflon® insulated wire
-
Enclosure MaterialFiberglass reinforced silicone
-
Insulation MaterialMolded silicone foam
-
Voltage Requirements100-240VAC input (240VAC provided with flying leads)
-
Current Requirements0.3 W
-
Dry Contact RelaySPDT, 2 A @ 50 VAC resistive, 1 A @ 30 VDC
-
ComplianceUL®/C-UL Listed, CE, Semi S2, NEMA 4x
Features
Display Only Temperature Controller
Series 48 heaters feature a unique temperature controller inside a NEMA 4X enclosure which integrates a temperature process controller, a high-low temperature alert, and power switching with a safety high limit. The Display Module allows the user to locally adjust the operating parameters, including temperature set point, high/low temperature alerts, high limit (safety) set point, control mode (on-off/PID) and related parameters. It contains an alphanumeric LED display that displays the heater’s current temperature and alert condition.
Display Module
Filter Heater Design

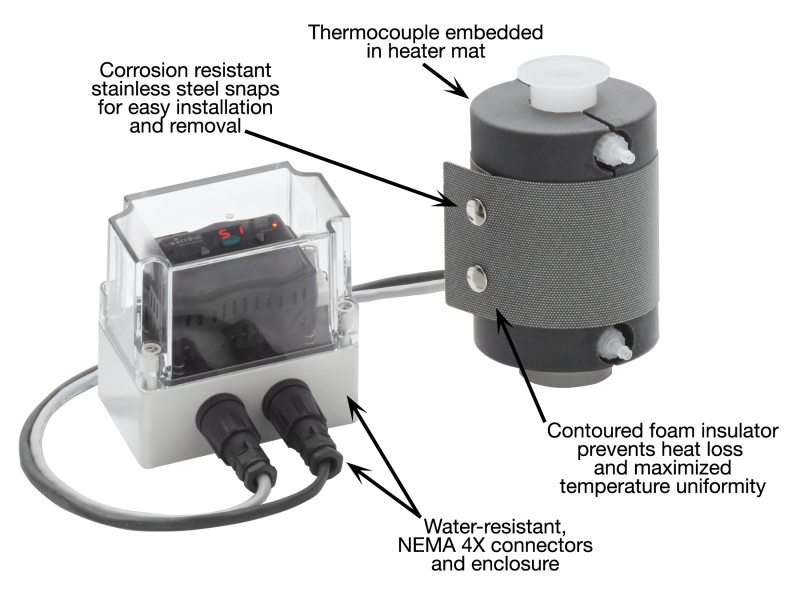

The Series 48 filter housing heaters consist of specially designed molded silicone foam for optimum performance and increased thermal uniformity with a thermocouple embedded in the heater mat for tight temperature control. The contoured design conforms to the housing body, preventing heat loss. Corrosion-resistant stainless steel snaps allow the heaters to be easily removed for filter cartridge replacement. External heater surfaces safe to touch.
Resources
Literature
- Series 48 Heaters for Single-Use Filters (230.8 kB, PDF)
