RS232 to Profibus Gateways
Overview

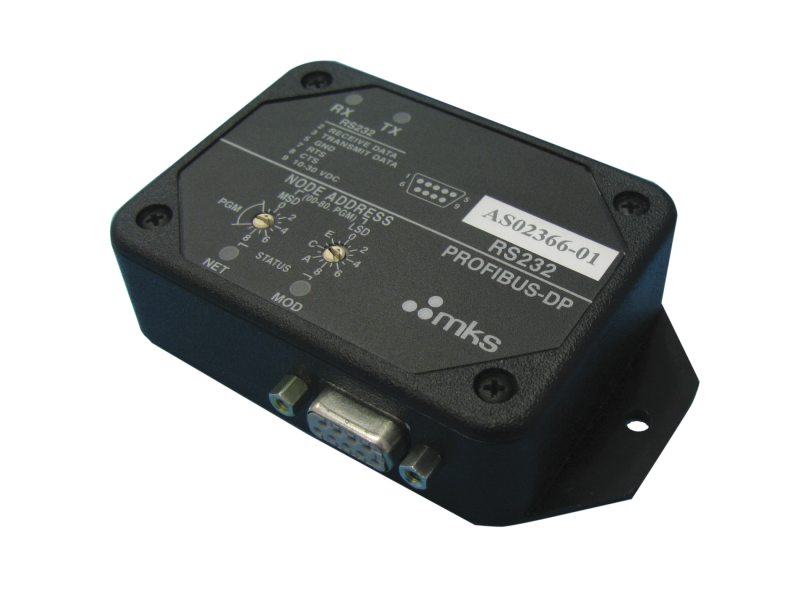

The RS232 to Profibus serial gateway is housed in a 21/2 x 31/4 inch plastic housing with mounting tabs. A standard DB9-Female connector provides the Profibus interface and a DB9-Male connector provides the RS232 interface. This gateway may be used to interface peripheral serial devices to Profibus system. The RS232 serial stream is internally buffered allowing a Master node to send and receive data using standard Profibus messaging.
Specifications
-
TypeAS02366 Profibus Serial Gateway, RS232 to Profibus Interface
-
Power Requirements11-28 VDC @50mA
Loss of Ground: Yes
Reversed Polarity -30VDC -
RS232 Data Rates300, 1220, 2400, 4800, 9600, 19200 (Rotary switched or SW selected)
-
RS232 Isolation500 Volts
-
RS232 Data Size7/8 bits (SW configuration)
-
RS232 ParityEven/Odd/None (SW configuration)
-
RS232 ESD Protection±10kV
-
RS232 Overload Protection±30V
-
RS232 Stop Bit1/2 SW configuration
-
RS232 Output Signal Levels±7.9 Volts typical
-
RS232 Short CircuitIndefinite
-
Profibus IpwrmA at 24 VDC
-
Profibus Signal LevelRS485
-
RS232 Flow ControlNone, RTC/CTS, x-ON/x-OFF (SW configuration)
-
Dimensions3.25 x 2.37x 1.08 inches
-
Mounting Holes1/2 inch tab, 3/16 inch diameter mounting hole
-
Operating Temperature0 - 50°C
Resources
Literature
- AS02366 Profibus Serial Gateway, RS232 to Profibus Interface (162.7 kB, PDF)
- PFB366 Profibus Serial Gateway (147.9 kB, PDF)
Manuals
- AS02366 Profibus Serial Gateway, RS232 to Profibus Interface Manual (253.8 kB, PDF)
- PFB366 Profibus Specifications (35.5 kB, PDF)
- AS02366 Serial Gateway Pin-outs (22.3 kB, PDF)
Device Description Files
- AS02366G-01 Firmware Version 4.1Â GSDÂ file (13.3 kB, GSD)
- PFB366 GSD File to be used with PFB366 - FW 3.2 (25.8 kB, GSD)
