Compare Description Drawings, CAD & Specs Availability Price
100761106
Double Claw Flange Clamp, ISO-MF, For Sizes NW63, NW80 or NW100
$4.27
1 Week
 100761106 Double Claw Flange Clamp, ISO-MF, For Sizes NW63, NW80 or NW100
1 Week
 $4.27
100761116
Double Claw Flange Clamp, ISO-MF, For Sizes NW160, NW200 or NW250
$8.60
1 Week
 100761116 Double Claw Flange Clamp, ISO-MF, For Sizes NW160, NW200 or NW250
1 Week
 $8.60
100761132
Double Claw Flange Clamp, ISO-MF Size NW320
$17.09
1 Week
 100761132 Double Claw Flange Clamp, ISO-MF Size NW320
1 Week
 $17.09
100761140
Double Claw Flange Clamp, ISO-MF For Sizes NW400 or NW500
$17.42
1 Week
 100761140 Double Claw Flange Clamp, ISO-MF For Sizes NW400 or NW500
1 Week
 $17.42

Specifications

Features

ISO Universal Vacuum Flange System

Series 76 ISO flange components are a vacuum flanging system for 63 mm to 1000 mm fittings. The dimension criteria are based on requirements established by the International Standards Organization (ISO). There are two flange styles in the ISO-Universal system: ISO-MF (multi-fastener flange) and ISO-BF (bolted flange). These flanges are also referred to as ISO-LF (large flange), ISO-K, ISO Universal, or as plain "ISO" flanges.

There are several advantages in the use of ISO components. One advantage is that the flange is “sexless.” The seal is on a symmetrical centering ring that interfaces with two identical flanges. In addition, ISO Universal flanges are more compact than ASA flanges, which were designed for pressure and are unnecessarily massive for vacuum use. Since these flanges are an ISO standard, they can be used with components from other manufacturers.

Series 76 flanges and components are made of type 304 stainless steel. Centering ring and seal assemblies are offered with an aluminum centering ring and spacer ring, or with a stainless centering ring and an aluminum spacer ring. Rotatable bolt rings and clamps are made of aluminum alloy. Retaining rings are made of steel. Flange seal surfaces are carefully machined and inspected for defects. They are cleaned and packaged to remain clean and protected in shipping. The Series 76 ISO-Universal flange components can be connected in various ways.

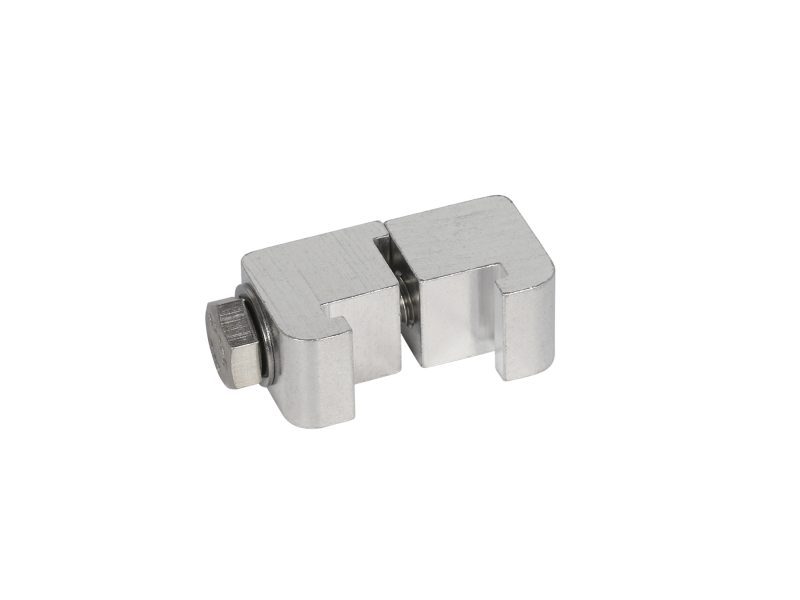

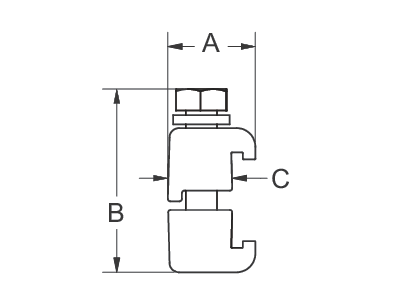

Double Claw ISO-MF Flange Clamps

Pairs of ISO-MF multi-fastener vacuum flanges can be joined by using our double claw flange clamps. This is usually the most economical arrangement for connecting ISO-MF flanges. Double claw flange clamps include two Aluminum flange clamps with a Stainless Steel bolt and washer.

Centering Ring Seal Material Options

There are a variety of choices available when selecting centering ring assemblies. Use Viton where temperatures, chemical resistance or long installed life make it beneficial. Use Buna-N where temperatures are moderate, and installed useful life is consistent with this material. The centering ring is available in stainless steel or aluminum. Use stainless steel where chemical resistance is needed. Flanges and seals are designed to be tightened to metal to metal contact. The torque rating for clamps and bolts is 7 to 10 pounds per foot.

ISO-MF Vacuum Flange Applications

The Series 76 ISO-MF vacuum flange component system is used in a variety of industries from process manufacturing to semiconductor fabrication to thin film deposition. Some uses in vacuum systems are:

  1. Roughing and foreline plumbing for large vacuum systems
  2. High vacuum, high conductance, interconnections
  3. Modular systems which will be modified frequently
  4. Experimental systems in research laboratories

ISO-Universal flange components using elastomer seals are primarily designed for use at subatmospheric pressure. When elastomer seals are used without baking, typical limiting pressures may be around 10-6 Torr. Baked systems using Viton can be used to 10-8 Torr.
