Compare Description Drawings, CAD & Specs Availability Price
filter housing heater
Filter Housing Heater, 240V, 5 in., Modbus RTU, Flying Lead Power Cable
$3,375
Filter Housing Heater, 240V, 10 in., Modbus RTU, Flying Lead Power Cable
$3,675
8 Weeks
8 Weeks
filter housing heater
Filter Housing Heater, 240V, 20 in., Modbus RTU, Flying Lead Power Cable
$4,375
8 Weeks
8 Weeks
filter housing heater
Filter Housing Heater, 240V, 30 in., Modbus RTU, Flying Lead Power Cable
$5,075
8 Weeks
8 Weeks

Specifications

  • Type
    Filter Housing Heater
  • Series
    Series 48
  • Set Point
    95°C (203°F)
  • Controller Module
    Display and Modbus RTU Communications
  • Foam Thickness
    0.5 in. (12.7 mm)
  • Heating Element Material
    Teflon-insulated Wire
  • Enclosure Material
    Polycarbonate Lid, ABS Base
  • Insulation Material
    Molded Silicone Foam
  • Cover Material
    Fiberglass-reinforced Silicone
  • Connector
    Bulgin Mini Buccaneer
  • Voltage Requirements
    200-240 VAC
  • Compliance
    CE, UL E493192, cUL E493192, SEMI S2, NEMA 4X

Features

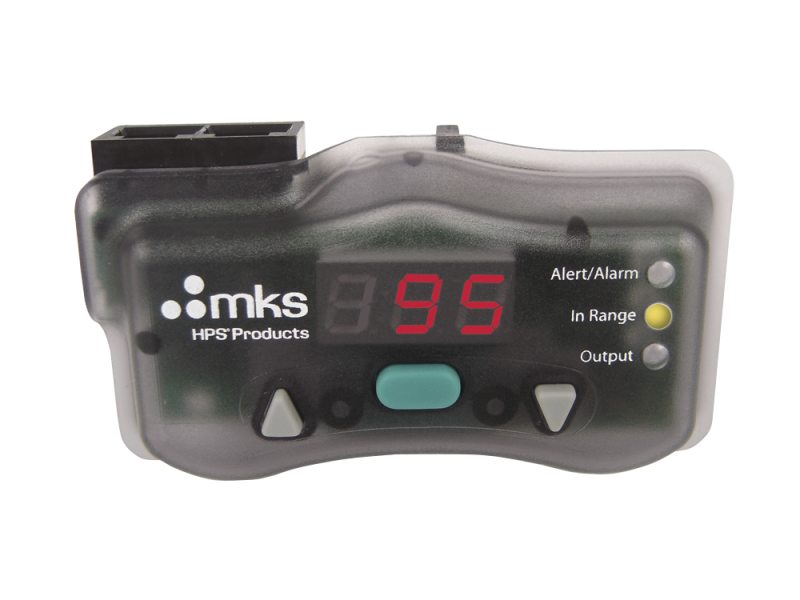

Display and Communications Temperature Controller

The temperature controller manages all of the functions for the heater, including: temperature control, thermal safety, and operating status notification via three colored LEDs. The Display and Communications Module includes all the functionality of the Display Module, but adds Modbus RTU communications with an RS485 interface. This allows users to remotely adjust the operating parameters and monitor heater operating status. The temperature controller is housed inside a protective NEMA 4X-rated enclosure that is resistant to water and dust. The enclosure is also resistant to corrosion and damage from ice buildup.

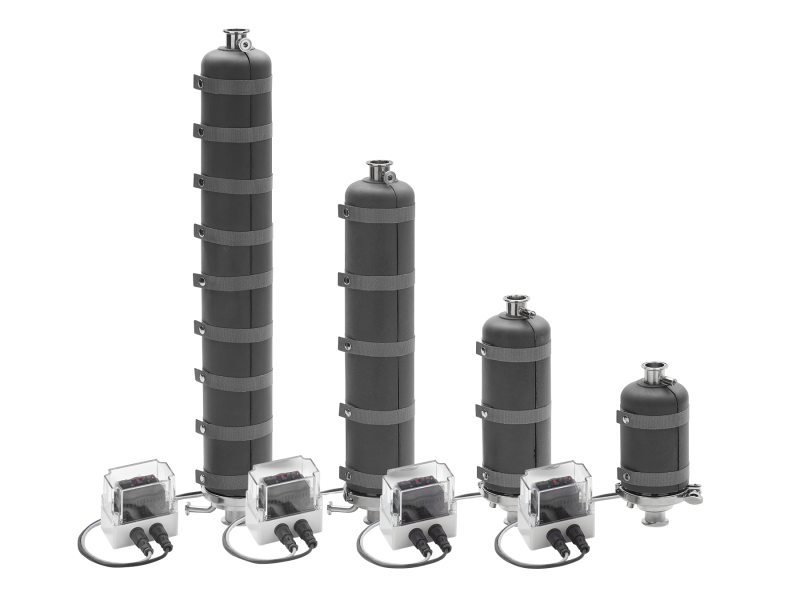

Filter Heater Design

The Series 48 filter housing heaters consist of specially designed molded silicone foam for optimum performance and increased thermal uniformity with a thermocouple embedded in the heater mat for tight temperature control. The contoured design conforms to the housing body, preventing heat loss. Corrosion-resistant stainless steel snaps allow the heaters to be easily removed for filter cartridge replacement. External heater surfaces safe to touch.

Applications

Series 48 filter housing heaters are used in conjunction with sterile vent and process filter housings and are ideally suited for processes such as:

  • Bioprocessing and Pharmaceutical Process Fluids
  • Fermentation
  • Product Recovery
  • Water for Injection
  • Filtration and Purification Processes
  • Skidded Systems
  • Tanks and Vessels

The NEMA-rated heaters allow for installation in the harshest of environments. The units can be mounted in any location where moisture is present, including clean-in-place (CIP) wash-down areas.
