Specifications

  • Type

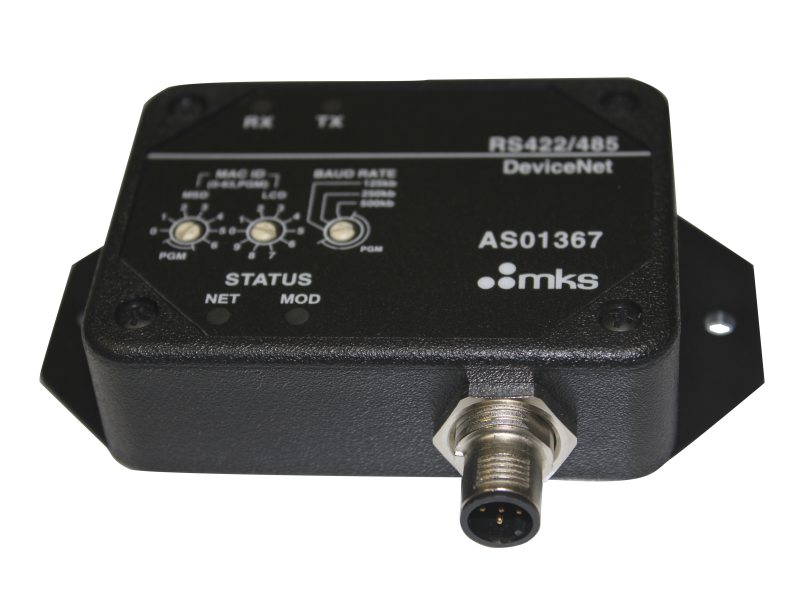

    AS01367 Serial Gateway DeviceNet™ to RS422/485 Interface
  • Power Requirements
    11-28 VDC @ 50mA
    Loss of Ground: Yes
    Reverse Polarity: -30 VDC
  • RS422/RS485 Isolation
    500 Volts
  • RS422/RS485 Overload Protection
    ±0 Volt
  • RS232 Short Circuit
    Indefinite
  • RS422/RS485 ESD Protection
    ±10 kv
  • RS422/RS485 Data Rates
    300, 1200, 2400, 4800, 9600, 19.2, 38.4
  • RS422/RS485 Parity
    Even/Odd/None
  • RS422/RS485 Data Size
    8/7 bits (software config.)
  • RS422/RS485 Stop Bits
    1/2 (software configurable)
  • RS422/RS485 Flow Control
    None. x-ON / x-OFF
  • DeviceNet Signal Levels
    ISO11598
  • Dimensions
    3.25 x 2.37 x 1.08 inches
  • Mounting Holes
    1/2 inch tab, 3/16 diameter Mtg Hole
  • Encapsulation
    RTV Silicon Compound
  • Operating Temperature
    0-50°C
