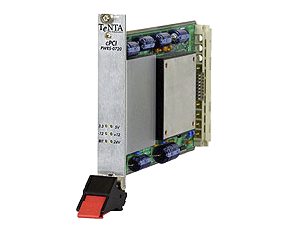

CompactPCI Power Supply Cards
Overview
- 24 VDC input, 85 W
- Requires a single slot
- M-type connector
- LED indication
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
AS00721-03 cPCI Power Supply Card, 3U, M-type Rear Connector, with BIT test | $685 |
|
||||
|
|
AS00721-07 cPCI Power Supply Card, 3U, M-type Rear Connector | $885 |
|
||||
|
|
AS00722-04 cPCI Power Supply Card, 3U, P47 Connector, with BIT test |
|
Specifications
-
TypePWRS-0720 3U Power Supply Card
-
Form FactorPlug in Eurocard, 3U Height, 8 HP Width (1 slot), IEEE (1101.1, 101.10 and P1101.11)
-
Front Panel Dimension128.5 mm Height x 20.32 mm Depth x 2.5 mm Thickness.
-
PCB Dimensions100 mm (3.9370 in.) Height x 160 mm (6.2992 in.) Depth x 1.6 mm (0.0629 in.) Thickness
-
Rear ConnectorsM-Type Connector
-
Front Panel Indicators6 LEDs
24V Input power
3.3V output
5V output
+12V output
-12V output
BIT test (for future use) -
Protection CircuitryIn rush current on power up: Common mode EMI suppression inductor
±12 V: Fusing: normal blow D.C. 1 A fuse in socket for easy removal. Over current: 0.996 A Over voltage: works at 13.8 V ~ 16.8 V
+5 V: Fusing: normal blow D.C 6 A fuse in socket for easy removal. Output current limit: 19 A ~ 22 A Over voltage: works at 5.85 V ~ 6.35 V Over temperature Limiting (TYP) Tc=115°C
+3.3 V: Fusing: normal blow D.C 10 A fuse in socket for easy removal. Output current limit: 12.6 A ~ 15 A Over voltage: works at 3.8 V ~ 4.3 V Over temperature Limiting (TYP) TC = 115°C
+24V (Input power): Fusing: normal blow D.C 10A fuse in socket for easy removal.
-
Ripple Noise3.3V: Max 45 mVp-p @ 25 Mhz, 8 mV RMS (with 90% load)
5V: Max 44 mVp-p @ 25 Mhz, 10 mV RMS (with 90% load)
±12V: Max 50 mVp-p @ 25 Mhz, 12 mV RMS (with 90% load) -
FusesF1: 24V in 10A
F2: +12V out 1A
F3: -12V out 1A
F4: +5V out 6A
F5: +3.3V out 7.5A -
Operating Temperature0 to 70°C
-
Storage Temperature-40 to 85°C
-
Humidity5-95% non-condensing
-
Weight300 g (0.66 lb)
Features

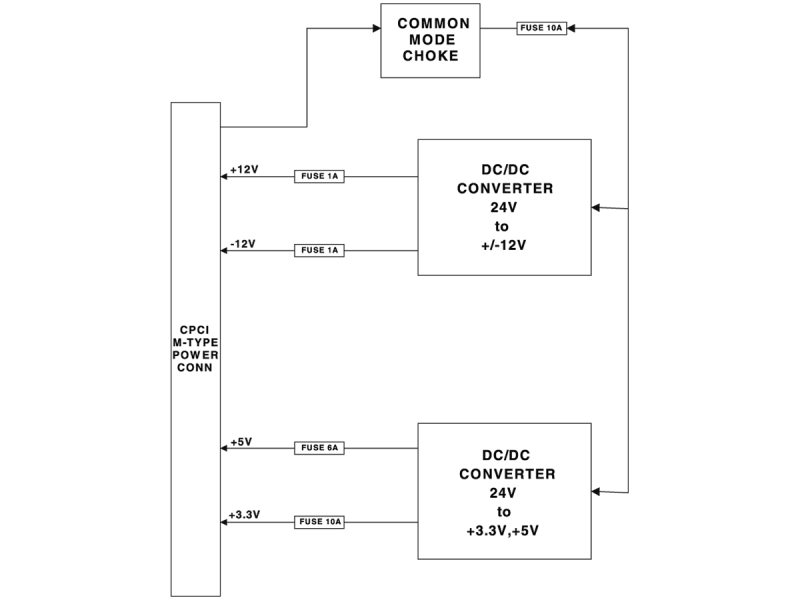

Block Diagram

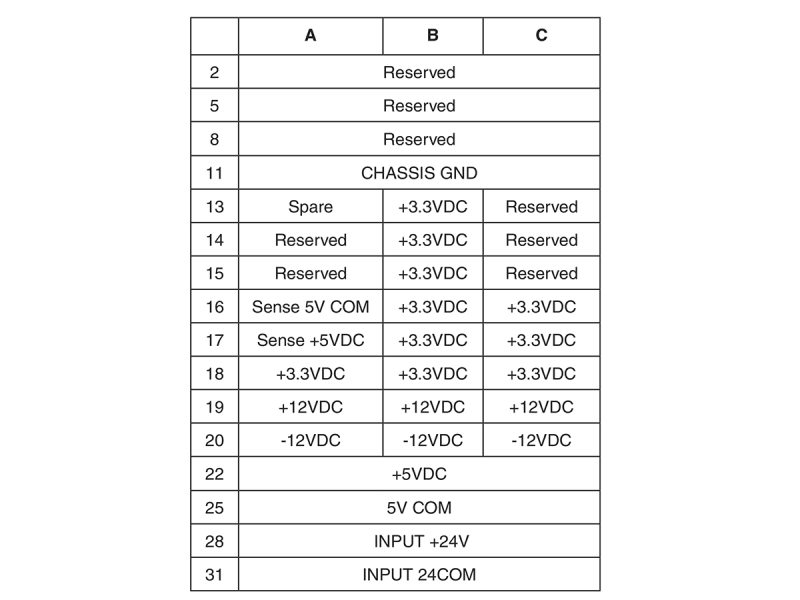

M-type Connector Pinouts
Resources
Literature
- PWRS-0720 3U CompactPCI® Power Supply Card (168.9 kB, PDF)
