Overview

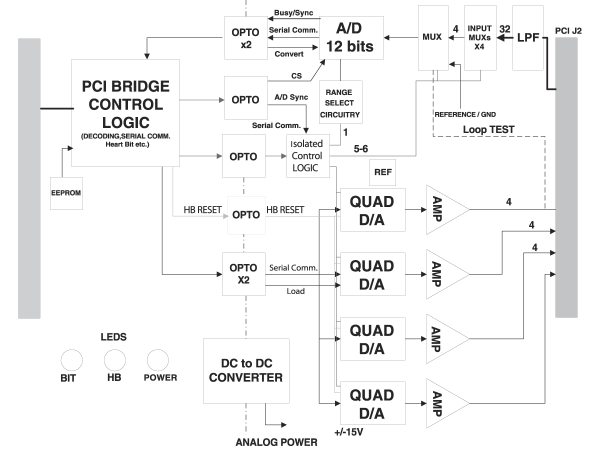

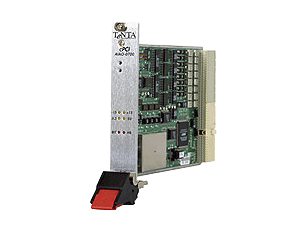

Our 3U analog input/output card is a general-purpose data acquisition control card containing 32 single ended analog inputs and 16 analog outputs. The I/O and power signals are distributed through J2 rear connector. The board form factor, physical dimensions and BUS interface comply with CompactPCI (cPCI) Specification PICMG® 2.0 R2.1.

32 single ended analog inputs
16 analog outputs
12-bit resolution
Software-selectable range 0V to 10V, -5V to +5V
Isolated power from cPCI bus
Watchdog timer

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Form Factor	Type	Bus	Availability	Featured Item	Price		Brand
		AS00700-02 Analog IO Card, 3U, cPCI Card Cage, 32 Inputs, 16 Outputs $1,125 Contact Us	AS00700-02 Analog IO Card, 3U, cPCI Card Cage, 32 Inputs, 16 Outputs	UNIVERSAL	0.0	1.0	0.0		0.0	Plug in Eurocard, 3U Height, 8 HP Width (1 slot), IEEE (1101.1, 101.10 and P1101.11)	Analog I/O Card	Compact PCI, 32 bit (16 bit data transfer) 33MHz	Contact Us		$1,125

Show All

Specifications

Type

AIAO-0700 3U Analog Input/Output Card
IO Type

Number of I/O: 48 points (32 input, 16 output)
Input: Single ended
Output: Single ended, ±5 mA max
Range: Software-selectable - 0 to 10 V, -5 to +5 V
Resolution: 12-bit
Accuracy: Full-scale of ±0.2%, Zero Volt - ±5 mV
Bus

Compact PCI, 32 bit (16 bit data transfer) 33 MHz
Plug and Play

Supports auto-recognition of board on power-on and plug-in; includes Device ID, Vendor ID, and configuration
Power Requirements

Digital Section: +3.3VDC @ 20 mA, +5VDC @ 1.36 mA from J1
I/O Section: ±15VDC @ 200 mA max generated from on-board 6W DC/DC
Form Factor

Plug in Eurocard, 3U Height, 8 HP Width (1 slot), IEEE (1101.1, 101.10 and P1101.11)
Front Panel Dimension

128.5 mm Height x 20.32 mm Depth x 2.5 mm Thickness.
PCB Dimensions

100 mm (3.9370 in.) Height x 160 mm (6.2992 in.) Depth x 1.6 mm (0.0629 in.) Thickness
Rear Connectors

Metric 2.0mm grid, female connector type A is used for J1 (cPCI BUS) and J2 (Signal distribution).

Front Panel Indicators

3.3V, 5V, -15V, +15V, HB, BIT
IO Protection

2 A fuse on each output driver
Protection

Watchdog Timer: Disables outputs (sets all outputs to inactive 0V on timeout)
Response Time

Write to Output Change - 100 us max
Input Change to Read - 150 us max
Operating Temperature

0 to 70°C
Storage Temperature

-40 to 85°C
Humidity

5-95% non-condensing
Weight

200 g (0.44 lb)
