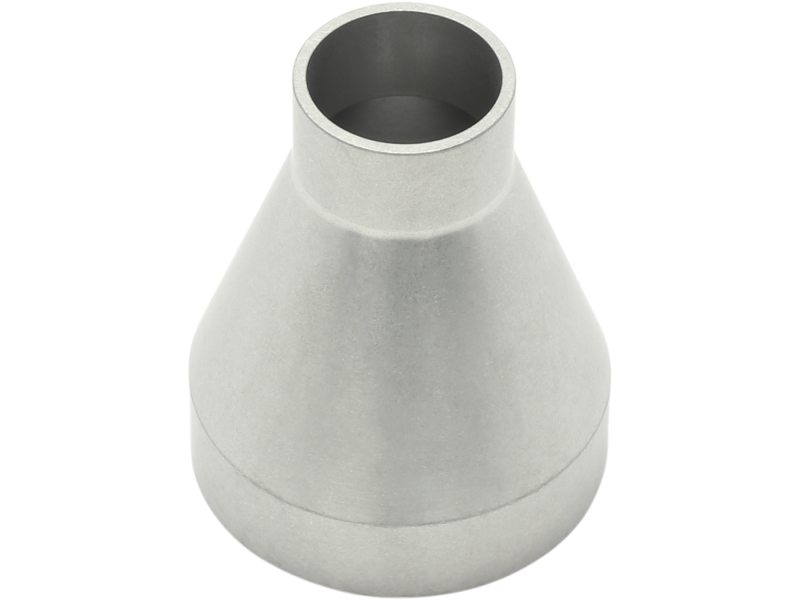

2 inch to 1 inch butt weld vacuum tube conical reducer fitting

Overview

Butt weld stainless steel conical reducers have different sized vacuum tubing on each end. A high conductance conical profile is used between the tubing sizes.

Butt weld conical reducers to reduce tube size
304 Stainless Steel construction
High conductance conical profile

See All Features

Products

Compare	Description	Compatibility	rankScore	Tube OD	Reduced Tube OD	Length	Availability	Price

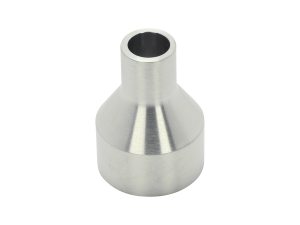

10023100CR050 Conical Reducer, Buttweld, 1.0 to 0.5 inch O.D., 304 Stainless Steel $45 1 Week	10023100CR050 Conical Reducer, Buttweld, 1.0 to 0.5 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	1.0 in.	0.5 in.		1 Week	$45

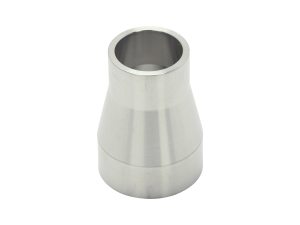

10023100CR075 Conical Reducer, Buttweld, 1.0 to 0.75 inch O.D., 304 Stainless Steel $24.15 Contact Us	10023100CR075 Conical Reducer, Buttweld, 1.0 to 0.75 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	1.0 in.	0.75 in.	1.37 in.	Contact Us	$24.15
10023150CR075 Conical Reducer, Buttweld, 1.5 to 0.75 inch O.D., 304 Stainless Steel $31 Contact Us	10023150CR075 Conical Reducer, Buttweld, 1.5 to 0.75 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	1.5 in.	0.75 in.	2.38 in.	Contact Us	$31

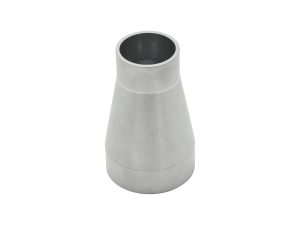

10023150CR100 Conical Reducer, Buttweld, 1.5 to 1.0 inch O.D., 304 Stainless Steel $32 1 Week	10023150CR100 Conical Reducer, Buttweld, 1.5 to 1.0 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	1.5 in.	1.0 in.	2.38 in.	1 Week	$32
10023200CR100 Conical Reducer, Buttweld, 2.0 to 1.0 inch O.D., 304 Stainless Steel $33 1 Week	10023200CR100 Conical Reducer, Buttweld, 2.0 to 1.0 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	2.0 in.	1.0 in.	2.38 in.	1 Week	$33

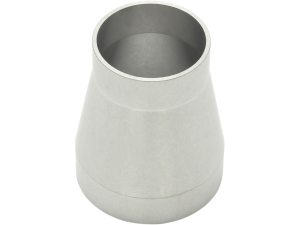

10023200CR150 Conical Reducer, Buttweld, 2.0 to 1.5 inch O.D., 304 Stainless Steel $37 1 Week	10023200CR150 Conical Reducer, Buttweld, 2.0 to 1.5 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	2.0 in.	1.5 in.	2.38 in.	1 Week	$37

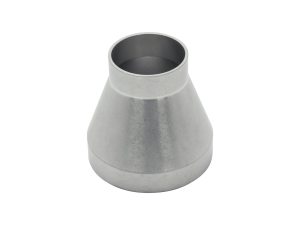

10023250CR150 Conical Reducer, Buttweld, 2.5 to 1.5 inch O.D., 304 Stainless Steel $44 1 Week	10023250CR150 Conical Reducer, Buttweld, 2.5 to 1.5 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	2.5 in.	1.5 in.	2.38 in.	1 Week	$44

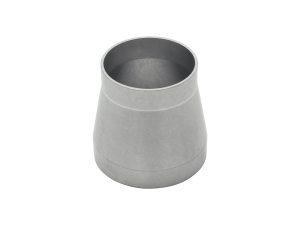

10023250CR200 Conical Reducer, Buttweld, 2.5 to 2.0 inch O.D., 304 Stainless Steel $49 1 Week	10023250CR200 Conical Reducer, Buttweld, 2.5 to 2.0 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	2.5 in.	2.0 in.	2.38 in.	1 Week	$49

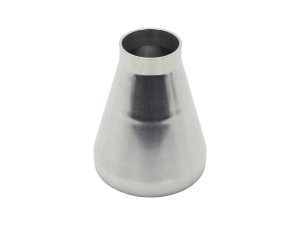

10023300CR150 Conical Reducer, Buttweld, 3.0 to 1.5 inch O.D., 304 Stainless Steel $61 1 Week	10023300CR150 Conical Reducer, Buttweld, 3.0 to 1.5 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	3.0 in.	1.5 in.	3.63 in.	1 Week	$61

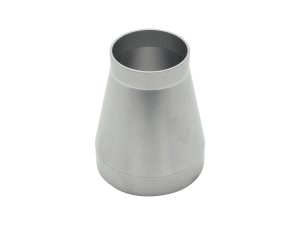

10023300CR200 Conical Reducer, Buttweld, 3.0 to 2.0 inch O.D., 304 Stainless Steel $61 1 Week	10023300CR200 Conical Reducer, Buttweld, 3.0 to 2.0 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	3.0 in.	2.0 in.	3.63 in.	1 Week	$61
10023300CR250 Conical Reducer, Buttweld, 3.0 to 2.5 inch O.D., 304 Stainless Steel $69 1 Week	10023300CR250 Conical Reducer, Buttweld, 3.0 to 2.5 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	3.0 in.	2.5 in.	3.63 in.	1 Week	$69
10023400CR200 Conical Reducer, Buttweld, 4.0 to 2.0 inch O.D., 304 Stainless Steel $75 1 Week	10023400CR200 Conical Reducer, Buttweld, 4.0 to 2.0 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	4.0 in.	2.0 in.	3.63 in.	1 Week	$75
10023400CR250 Conical Reducer, Buttweld, 4.0 to 2.5 inch O.D., 304 Stainless Steel $82 1 Week	10023400CR250 Conical Reducer, Buttweld, 4.0 to 2.5 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	4.0 in.	2.5 in.	3.63 in.	1 Week	$82
10023400CR300 Conical Reducer, Buttweld, 4.0 to 3.0 inch O.D., 304 Stainless Steel $89 1 Week	10023400CR300 Conical Reducer, Buttweld, 4.0 to 3.0 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	4.0 in.	3.0 in.	3.63 in.	1 Week	$89
10023600CR300 Conical Reducer, Buttweld, 6.0 to 3.0 inch O.D., 304 Stainless Steel $368 1 Week	10023600CR300 Conical Reducer, Buttweld, 6.0 to 3.0 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	6.0 in.	3.0 in.	9.0 in.	1 Week	$368
10023600CR400 Conical Reducer, Buttweld, 6.0 to 4.0 inch O.D., 304 Stainless Steel $342 1 Week	10023600CR400 Conical Reducer, Buttweld, 6.0 to 4.0 inch O.D., 304 Stainless Steel	UNIVERSAL	1.0	6.0 in.	4.0 in.	9.0 in.	1 Week	$342

Show All

Specifications

Component Type

Conical Reducer
Fitting Type

Butt Weld

Series

Series 23
Material

304 Stainless Steel

Features

Buttweld Component Construction

The Series 23 components are constructed of 304 or 304L welded, drawn, and annealed stainless steel tubing. (316L is available on request.) For most vacuum process applications, this provides the best combination of the following critical features:

Low outgassing under vacuum
Chemically resistant
Annealed for consistent leak free welding
Minimized corrosion concentration points
Good availability
Cost consistent with the above requirements

Each component is fabricated using pulled port and 100% penetration TIG weld techniques. All welded components are leak free, carefully cleaned for high vacuum use and then packaged to remain clean until the time of installation.

Recommended Welding Techniques

Series 23 fittings are designed to be welded using techniques preferred for vacuum applications. These techniques include internal (socket type) welding and external buttwelding. The most commonly used type of weld for high vacuum applications is a TIG (Tungsten Inert Gas) fusion weld, preferably without filler rod. For the best results, remove components from packaging in clean conditions during installation. Handle the components with clean gloves and equipment in the absence of any fibers, fingerprint oils, or other greases. If these precautions are taken, the weld is more likely to be leak free and the integrity of the vacuum surface will remain intact and ready for use.

General hints for good vacuum welds include:

Always start with clean and properly weld prepped components.
For internal welds, minimize warping by using only enough heat for 60-75% penetration.
For external buttwelds, make sure they are 100% penetration with no internal cracks or crevices.
Do not weld internally then externally around the entire circumference of the fittings.
Make sure there is little or no gap between pieces to be welded.
Ensure that all surfaces affected by the heat of the weld, especially the vacuum side, are purged properly with inert gas.

Applications

Vacuum buttweld fittings are designed to be used in any vacuum applications where minimizing the number of sealed joints is critical.

Semiconductor wafer fabrication areas for remote installations and below a raised floor
Permanent house vacuum lines
Vacuum utility lines for vacuum fixtures
High temperature lines
Burn box exhaust lines
