Alter® DC2340 and DC 1340 Directional Couplers
Overview

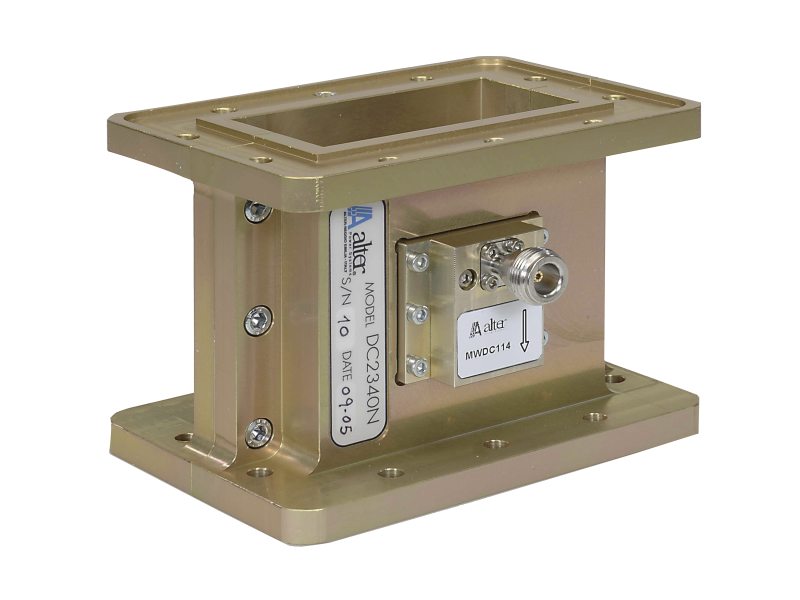

The DC 2340 is a dual directional coupler designed for sampling forward and reverse power in 2450 MHz industrial applications. The DC 1340 is the single channel version. Both are manufactured in a compact aluminum block, alodine finishing, with standard end flanges style R26 for WR340 waveguide.
- Precise sensor for microwave power
- Rugged design
- Sample forward and reverse power in 2450 MHz industrial applications
Products
Specifications
-
TypeDC 2340, DC 1340 Directional Couplers
-
VSWR1.25 max
-
Directivity25 dB
-
Flange TypeR 26 (IEC 153)
-
Maximum Power6 kW
-
Coupling Factor60 dB ±1 dB
-
Output ConnectorN female (standard) SMA-F on request
-
Waveguide SizeWR340
-
Operating Frequency2450MHz, ±25MHz
-
Dimensions100 x 99mm
-
WeightDC2340: 1 kg.
DC1340: 0.9 kg.
