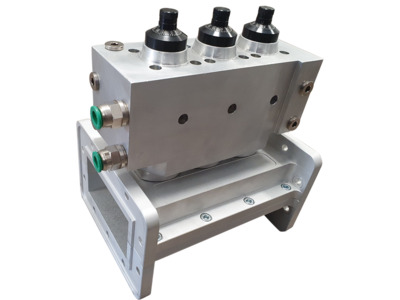

AG 340 LC Liquid-cooled Manual 3 Stub Tuner for Generators up to 10kW
Overview
The AG 340 LC Manual 3-Stub Tuner is designed for load impedance matching in high power microwave applications. The stub comes with a precision multi-turn dial mechanism for tuning adjustment. This provides a wide range of tuning capability for a microwave system of up to 10 kW of forward power at 2450 MHz.
- Reduce VSWR for system up to 10 kW microwave power
- High quality and robust design
- Improved tuning capabilities under mismatched conditions
- Enhanced cooling for better tuning stability
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
AG340-LC Microwave Tuner, Liquid-Cooled, Manual, 3-Stub, 2450 MHz |
|
Specifications
-
TypeLiquid-cooled Manual 3 Stub Tuner
-
Stub Insertion Length25 mm
-
Flange TypeR26 (IEC 153)
-
MaterialAluminium (waveguide, cooling jacket, stubs)
-
CoolingLiquid-cooled
-
WaveguideWR340
-
Operating Frequency2450 MHz ±50 MHz
-
PowerCW 10 kW FWD and 5 kW RFL simultaneously
-
Cooling Water Flow Rate1 liter/minute (minimum)
-
Cooling Water Temperature15-25°C
-
Maximum Pressure5 bar
Features

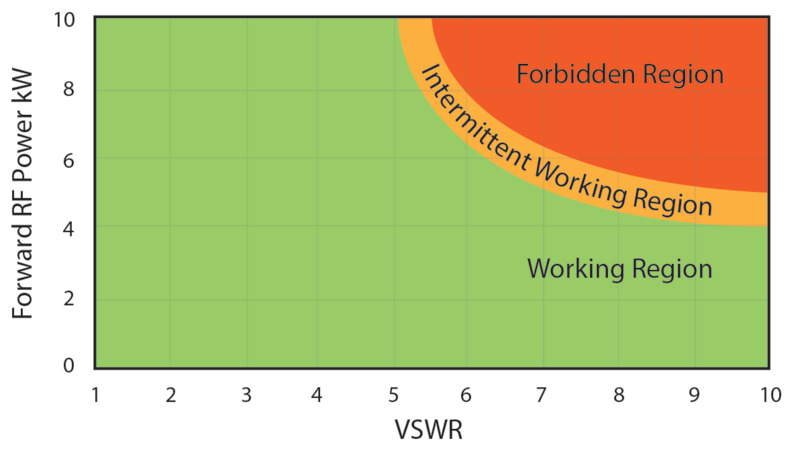

Operating Graph
Resources
Literature
Drawings & CADs
- AG 340 LC Dimensional Drawing (276.6 kB, PDF)
