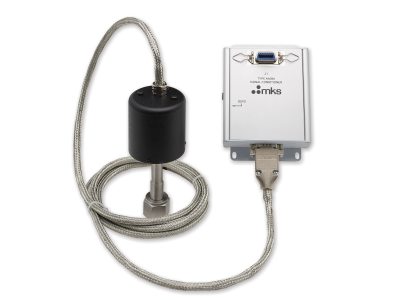

The AA09A Baratron® capacitance manometer employs a high temperature sensor which can operate at up to 150°C (bakeable to 200°C) for critical processing applications. Based on Baratron capacitance manometer technology, the sensors wetted surfaces are Inconel® for excellent resistance to corrosive gases. The sensor and electronics of the AA09A are separated by an eight foot cable, which allows the electronics to be mounted away from sources of heat. The AA09A can be used with MKS power supplies, display units, and pressure controllers, or the user’s compatible power supply/readout devices.
Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
---|---|---|---|---|---|---|---|
Absolute Pressure Transducer, 1 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics
$2,577
14 Weeks
|
AA09A01TCE0 Absolute Pressure Transducer, 1 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics |
14 Weeks
|
$2,577 |
|
|||
Absolute Pressure Transducer, 10 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics
$2,577
14 Weeks
|
AA09A11TCE0 Absolute Pressure Transducer, 10 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics |
14 Weeks
|
$2,577 |
|
|||
Absolute Pressure Transducer, 100 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics
$2,577
14 Weeks
|
AA09A12TCE0 Absolute Pressure Transducer, 100 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics |
14 Weeks
|
$2,577 |
|
|||
Absolute Pressure Transducer, 1000 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics
$2,432
14 Weeks
|
AA09A13TCE0 Absolute Pressure Transducer, 1000 Torr, 0.5%, 0-10 VDC, 8 VCR-F, Remote Electronics |
14 Weeks
|
$2,432 |
|
The following options are available for AA09A Baratron® Pressure Transducers with Remote Electronics
Ordering Code Example: AA09AXXXXXX
Configuration Option | Option Code |
---|---|
AA09A Baratron Absolute Pressure Transducer with Remote Electronics | AA09A |
Pressure Range Full Scale* |
|
1 Torr | 01 |
2 Torr | 02 |
10 Torr | 11 |
100 Torr | 12 |
1000 Torr | 13 |
5000 Torr | 53 |
10,000 Torr | 14 |
15,000 Torr | RB |
20,000 Torr | 24 |
25,000 Torr | RC |
Units of Measure |
|
Torr/mmHG | T |
mbar | M |
KPa | K |
Pa | L |
Fitting Type |
|
Straight tube, 0.5 in. OD (≤1000 Torr) | BA |
8 VCR female | CE |
Mini Conflat, Rotatable | HA |
NW16-KF (≤1000 Torr) | GA |
Accuracy |
|
Standard 0.5% of Reading | 0 |
