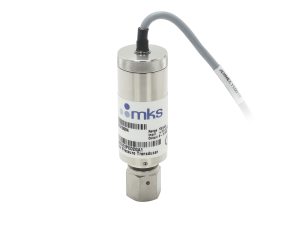

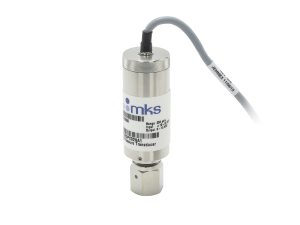

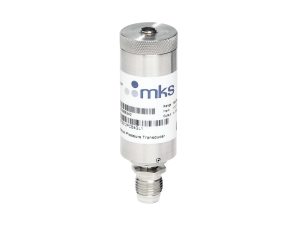

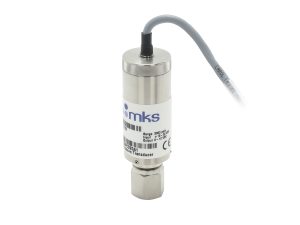

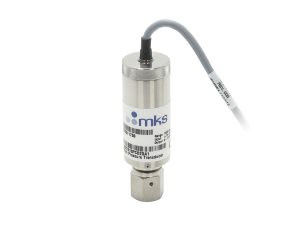

AA07B Micro-Baratron® High Pressure, Ultraclean, Single-end, Pressure Transducers

AA07B Micro-Baratron® High Pressure, Ultraclean, Single-end, Pressure Transducers

Products
Configuration Options
Features
Resources
Contact Us

aa07 high pressure, single-end, pressure transducer

Overview

The AA07B Micro-Baratron® is a higher accuracy, single-end pressure transducer offering superior value and performance. The building block design of Micro-Baratron® pressure transducers make custom configuration easy. A highly accurate and stable sensor with sophisticated electronics optimize performance with EMI/RFI insensitive, high level output. The AA07B offers enhanced accuracy, long term stability and low temperature coefficients for repeatability important in today's gas measurement applications.

Single-ended configuration for branch pressure measurement
Incoloy® wetted surface for superior corrosive gas & liquid compatibility
Highest overpressure ratio tolerances on the market
Accuracy specified in percentage of reading for superior results in lower pressure ranges
Capacitance technology at a competitive price

See All Features

aa07 high pressure, single-end, pressure transducer

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Full Scale Pressure	Analog Output	Fitting Type	Connector	Enclosure	Availability	Featured Item	Price		Brand
		AA07B12PBB2GT1 Pressure Transducer, 100 psia, Single-end, 0-10 VDC, 0.25 in. Tube, LDM-C, 15-pin HD $1,536 Contact Us	AA07B12PBB2GT1 Pressure Transducer, 100 psia, Single-end, 0-10 VDC, 0.25 in. Tube, LDM-C, 15-pin HD	UNIVERSAL	0.0	1.0	0.0		0.0	100 psia	0-10 VDC	0.25 in. weld stub		Standard	Contact Us		$1,536
		AA07B12PCB4GF4 Pressure Transmitter, 100 psia, Single-end, 4-20 mA, 4 VCR Male, Flying Leads $1,390 Contact Us	AA07B12PCB4GF4 Pressure Transmitter, 100 psia, Single-end, 4-20 mA, 4 VCR Male, Flying Leads	UNIVERSAL	0.0	1.0	0.0		0.0	100 psia	4-20 mA	4 VCR male		NEMA 4	Contact Us		$1,390
		AA07B12PCD2GA1 Pressure Transducer, 100 psia, Single-end, 0-10 VDC, 4 VCR Female, DB9 on 9 in. Flying Lead $1,130 14 Weeks	AA07B12PCD2GA1 Pressure Transducer, 100 psia, Single-end, 0-10 VDC, 4 VCR Female, DB9 on 9 in. Flying Lead	UNIVERSAL	0.0	1.0	0.0		0.0	100 psia	0-10 VDC	4 VCR female		Standard	14 Weeks		$1,130
		AA07B13PCB2GA1 Pressure Transducer, 1000 psia, Single-end, 0-10 VDC, 4 VCR-M, DB9 on 9 in. Flying Lead $1,130 Contact Us	AA07B13PCB2GA1 Pressure Transducer, 1000 psia, Single-end, 0-10 VDC, 4 VCR-M, DB9 on 9 in. Flying Lead	UNIVERSAL	0.0	1.0	0.0		0.0	1000 psia	0-10 VDC	4 VCR male		Standard	Contact Us		$1,130
		AA07B13PCD2GA1 Pressure Transducer, 1000 psia, Single-end, 0-10 VDC, 4 VCR-F, DB9 on 9 in. Flying Lead $1,130 14 Weeks	AA07B13PCD2GA1 Pressure Transducer, 1000 psia, Single-end, 0-10 VDC, 4 VCR-F, DB9 on 9 in. Flying Lead	UNIVERSAL	0.0	1.0	0.0		0.0	1000 psia	0-10 VDC	4 VCR female		NEMA 4	14 Weeks		$1,130
		AA07B13TCB3GA1 Pressure Transducer, 1000 Torr, Single-end, 0-5 VDC, 4 VCR-M, DB9 on 9 in. Flying Lead $1,131 Contact Us	AA07B13TCB3GA1 Pressure Transducer, 1000 Torr, Single-end, 0-5 VDC, 4 VCR-M, DB9 on 9 in. Flying Lead	UNIVERSAL	0.0	1.0	0.0		0.0	1000 Torr	0-5 VDC	4 VCR male		Standard	Contact Us		$1,131
		AA07B13TCD2GC1 Pressure Transducer, 1000 Torr, Single-end, 0-10 VDC, 4 VCR-F, 15-pin HD on 9 in. Flying Lead $1,130 Contact Us	AA07B13TCD2GC1 Pressure Transducer, 1000 Torr, Single-end, 0-10 VDC, 4 VCR-F, 15-pin HD on 9 in. Flying Lead	UNIVERSAL	0.0	1.0	0.0		0.0	1000 Torr	0-10 VDC	4 VCR female		Standard	Contact Us		$1,130
		AA07B33PBD4GL4 Pressure Transmitter, 3000 psia, Single-end, 4-20 mA, 0.25 in. Weld T, Flying Leads $1,478 Contact Us	AA07B33PBD4GL4 Pressure Transmitter, 3000 psia, Single-end, 4-20 mA, 0.25 in. Weld T, Flying Leads	UNIVERSAL	0.0	1.0	0.0		0.0	3000 psia	4-20 mA	0.25 in. butt weld T		NEMA 4	Contact Us		$1,478
		AA07B33PCD2GA1 Pressure Transducer, 3000 psia, Single-end, 0-10 VDC, 4 VCR-F, DB9 on 9 in. Flying Lead $1,130 14 Weeks	AA07B33PCD2GA1 Pressure Transducer, 3000 psia, Single-end, 0-10 VDC, 4 VCR-F, DB9 on 9 in. Flying Lead	UNIVERSAL	0.0	1.0	0.0		0.0	3000 psia	0-10 VDC	4 VCR female		Standard	14 Weeks		$1,130
		AA07BRDPCD2GA1 Pressure Transducer, 250 psia, Single-end, 0-10 VDC, 4 VCR Female, DB9 on 9 in. Flying Lead $1,130 14 Weeks	AA07BRDPCD2GA1 Pressure Transducer, 250 psia, Single-end, 0-10 VDC, 4 VCR Female, DB9 on 9 in. Flying Lead	UNIVERSAL	0.0	1.0	0.0		0.0	250 psia	0-10 VDC	4 VCR female		Standard	14 Weeks		$1,130
		AA07BRDPCD4GD1 Pressure Transmitter, 250 psia, Single-end, 4-20 mA, 4 VCR Male, Bendix 4-pin $1,188 Contact Us	AA07BRDPCD4GD1 Pressure Transmitter, 250 psia, Single-end, 4-20 mA, 4 VCR Male, Bendix 4-pin	UNIVERSAL	0.0	1.0	0.0		0.0	250 psia	4-20 mA	4 VCR female		Standard	Contact Us		$1,188

Show All

Configuration Options

The following options are available for the AA07B Micro-Baratron® High Pressure Single-end Pressure Transducer.
Ordering Code Example: AA07B33PCB2GA1

Configuration Option	Option Code
AA07B Single-ended Pressure Transducer	AA07B
Pressure Range Full Scale*
1000 Torr	13T
100 psia	12P
250 psia	RDP
1000 psia	13P
3000 psia	33P
Fittings
½” weld stub	BA
¼” weld stub	BB
¼” Butt-welded “T”	BD
4 VCR male, rotatable	CB
4 VCR female	CD
Analog Output
0-10 VDC	2
0-5 VDC	3
4-20 mA	4
Accuracy
1% of Reading	G
Connectors
9-pin type D at end of 9” flying lead	A
15-pin high density type D at end of 9” flying lead	C
Bendix 4-pin at end of 9” flying lead	D
6’ flying leads	F
10’ flying leads	L
Bendix 4-pin 4-20 mA on pins A&B	H
LDM-C (Red LED), 0-5 VDC and 0-10 VDC with high density D connector	T
LDM-C (with Blank Cover), 0-5 VDC and 0-10 VDC with high density D connector	W
Environmental
Standard enclosure (indoor use)	1
Optional NEMA 4 enclosure for water, ice and dust	4

* Other engineering units available (i.e. KPa). Consult Applications Engineering for additional information

Show All Configuration Options

	Description
	AA07B Absolute Capacitance Manometer, Single-end, AA07A Micro-Baratron

Specifications

Type

Pressure Transducer
Configuration

Single-ended
Measurement Type

Absolute
Accuracy

1.0% of Reading
Zero Temperature Coefficient

0.02% of Full Scale/°C, 50 psia to 3000 psia
0.04% of Full Scale/°C, 1000 Torr
Span Temperature Coefficient

0.04% of Reading/°C, 50 psia to 3000 psia
0.08% of Reading/°C, 1000 Torr
Overpressure Limit

1.5 x Full Scale for ranges from 1000 Torr to 500 psi
1.2 x Full Scale for ranges from 501 to 3000 psi

Burst Pressure

10 x Full Scale for ranges from 1000 Torr to 500 psi
5 x Full Scale for ranges from 501 to 3000 psi
Exposed Materials

Incoloy®
Surface Finish

≤10 µin Ra
Power Requirements

13 to 32 VDC @ 10 mA max.
Operating Temperature Range

0-50°C
Compliance

CE

Features

Baratron® Capacitance Manometer Technology

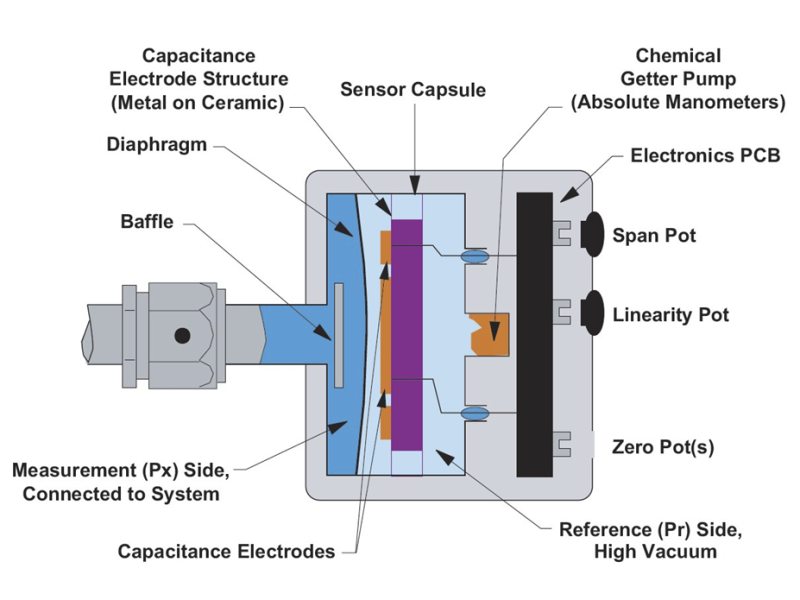

Capacitance manometers are electro-mechanical gauges that can measure both pressure and vacuum. The capacitance gauge translates a pressure-modulated movement in a thin diaphragm into an electrical signal proportional to the pressure. The pressure sensor is the thin diaphragm that is exposed to the pressure or vacuum being measured via the inlet tube. An electrode is mounted in the reference cavity behind the diaphragm. Pressure differences between the process and the reference cavity deflect the diaphragm slightly, changing the distance between it and the electrode. Variations in this distance produce variations in the capacitance between the diaphragm and the electrode creating an electrical signal that is proportional to the pressure change. Since differences in the capacitance signal are produced by physical changes within the manometer and not by changes in the gas properties, pressure measurements by the capacitance manometer are independent of the composition of the gas being measured.

Gas independent pressure measurement with a Baratron® capacitance manometer. Schematic shows the internal components and functional zones.

Percent of Reading Accuracy

Accuracy is specified as a percent of Reading, not Full Scale, as seen in some of the lower performance devices. Percent of Reading accuracy provides you with an even more accurate output signal in the lower scale of the pressure range, where it is needed most.

Ideally Suited for Ultrapure Gas Delivery Systems

The AA07/AA08 transducers are ideally suited for use in delivery systems that feed ultrapure gases to critical process systems. Their wetted surfaces exposed to the gas stream have a finish of better than 5 µin Ra. These transducers exhibit superior dry-down characteristics, and contribute no particles above background. After manufacture and assembly, they are purged with ultraclean nitrogen prior to double bagging in a class 100 environment.

All Incoloy® Construction

The all-Incoloy® construction of the sensors in the AA07/AA08 allow for high overpressure tolerances that reduce errors due to line pressure spikes. High burst pressure ratings contribute to overall system safety. On existing gas cabinets and process systems, field replacement of common dial gauges or lower performance transducers is made easy due to the small size, industry standard endto-end lengths, and electrical interface choices of these transducers.

Optional Local Display

The optional local integrated display provides a digital readout of the line pressure at the transducer. The display, which is available on the 1000 Torr, 100 and 250 PSIA ranges with the 0-10 VDC output signal, provides a highly visible red LED display of the pressure and the units of measurement. The display can also be switched to show any of four different units (PSIA, Torr, bar, and kPa) without requiring recalibration or re-ranging of the transducer itself. It takes its power from the incoming transducer voltage, so no additional cables are required.

Resources

Literature

AA07B, AA08B Micro-Baratron® Pressure Transducers (2.2 MB, PDF)

Manuals

MKS AA07B & AA08B Transducers Manual (758.6 kB, PDF)
AA07 & AA08 Pressure Transducer Pin-outs (25.5 kB, PDF)

Drawings & CADs

AA07 & AA08 Baratron® Pressure Transducer Dimensional Drawing (1,009.5 kB, PDF)

Need help?

Contact an Applications Specialist by sending us an email
