AA06A Baratron® Absolute Pressure Sensor

Products
Configuration Options
Accessories
Resources
Contact Us

Overview

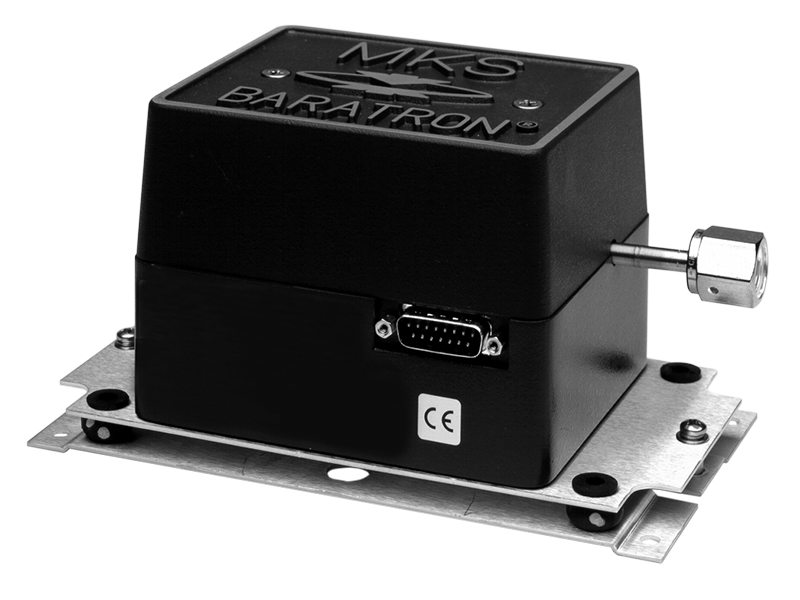

AA06A Baratron® absolute pressure sensors are single-ended dual-electrode/AC bridge devices that are extremely stable and designed to minimize the effect of temperature changes. Full Scale ranges are available from 25,000 Torr down to 0.1 Torr. Each range measures down to 1 part in 106 Full Scale with selected percent Reading accuracy limited by this resolution and with accuracies ranging from 0.25% to 0.05% of Reading. They are constructed of Inconel® and stainless steel, allowing use with many wet, dirty, or corrosive gases.

Note: The AA06A/AD06A require the use of an MKS 670C signal conditioner (Legacy 670B/270s are also compatible) to provide the various voltages to the AA06A/AD06A and to convert the sensor level signals from the AA06A/AD06A to a pressure reading.

Absolute pressure measurement
Ranges from 0.1 to 25,000 Torr
Highest accuracy pressure measurement instrument available
Six decades of measurement eliminates several transducers with limited resolution

Compare	Description	Compatibility	rankScore	Full Scale Range	Accuracy	Fitting Type	Availability	Price
AA06A.1TRB Absolute Reference Pressure Sensor, 0.1 mmHg, 0.08% Accuracy, 4 VCR-F $4,835 15 Weeks	AA06A.1TRB Absolute Reference Pressure Sensor, 0.1 mmHg, 0.08% Accuracy, 4 VCR-F	UNIVERSAL	1.0	0.1 mmHg	0.08% of Reading	4 VCR female	15 Weeks	$4,835
AA06A.1TRC Absolute Reference Pressure Sensor, 0.1 mmHg, 0.12% Accuracy, 4 VCR-F $4,487 15 Weeks	AA06A.1TRC Absolute Reference Pressure Sensor, 0.1 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	1.0	0.1 mmHg	0.12% of Reading	4 VCR female	15 Weeks	$4,487
AA06A01TRA Absolute Reference Pressure Sensor, 1 mmHg, 0.05% Accuracy, 4 VCR-F $4,546 15 Weeks	AA06A01TRA Absolute Reference Pressure Sensor, 1 mmHg, 0.05% Accuracy, 4 VCR-F	UNIVERSAL	1.0	1 mmHg	0.05% of Reading	4 VCR female	15 Weeks	$4,546
AA06A01TRB Absolute Reference Pressure Sensor, 1 mmHg, 0.08% Accuracy, 4 VCR-F $4,227 15 Weeks	AA06A01TRB Absolute Reference Pressure Sensor, 1 mmHg, 0.08% Accuracy, 4 VCR-F	UNIVERSAL	1.0	1 mmHg	0.08% of Reading	4 VCR female	15 Weeks	$4,227
AA06A01TRC Absolute Reference Pressure Sensor, 1 mmHg, 0.12% Accuracy, 4 VCR-F $3,879 15 Weeks	AA06A01TRC Absolute Reference Pressure Sensor, 1 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	1.0	1 mmHg	0.12% of Reading	4 VCR female	15 Weeks	$3,879
AA06A11TRA Absolute Reference Pressure Sensor, 10 mmHg, 0.05% Accuracy, 4 VCR-F $4,546 15 Weeks	AA06A11TRA Absolute Reference Pressure Sensor, 10 mmHg, 0.05% Accuracy, 4 VCR-F	UNIVERSAL	1.0	10 mmHg	0.05% of Reading	4 VCR female	15 Weeks	$4,546
AA06A11TRB Absolute Reference Pressure Sensor, 10 mmHg, 0.08% Accuracy, 4 VCR-F $4,227 15 Weeks	AA06A11TRB Absolute Reference Pressure Sensor, 10 mmHg, 0.08% Accuracy, 4 VCR-F	UNIVERSAL	1.0	10 mmHg	0.08% of Reading	4 VCR female	15 Weeks	$4,227
AA06A11TRC Absolute Reference Pressure Sensor, 10 mmHg, 0.12% Accuracy, 4 VCR-F $3,879 15 Weeks	AA06A11TRC Absolute Reference Pressure Sensor, 10 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	1.0	10 mmHg	0.12% of Reading	4 VCR female	15 Weeks	$3,879
AA06A12TRA Absolute Reference Pressure Sensor, 100 mmHg, 0.05% Accuracy, 4 VCR-F $4,546 15 Weeks	AA06A12TRA Absolute Reference Pressure Sensor, 100 mmHg, 0.05% Accuracy, 4 VCR-F	UNIVERSAL	1.0	100 mmHg	0.05% of Reading	4 VCR female	15 Weeks	$4,546
AA06A12TRB Absolute Reference Pressure Sensor, 100 mmHg, 0.08% Accuracy, 4 VCR-F $4,227 15 Weeks	AA06A12TRB Absolute Reference Pressure Sensor, 100 mmHg, 0.08% Accuracy, 4 VCR-F	UNIVERSAL	1.0	100 mmHg	0.08% of Reading	4 VCR female	15 Weeks	$4,227
AA06A12TRC Absolute Reference Pressure Sensor, 100 mmHg, 0.12% Accuracy, 4 VCR-F $3,879 15 Weeks	AA06A12TRC Absolute Reference Pressure Sensor, 100 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	1.0	100 mmHg	0.12% of Reading	4 VCR female	15 Weeks	$3,879
AA06A13TRA Absolute Reference Pressure Sensor, 1000 mmHg, 0.05% Accuracy, 4 VCR-F $4,546 15 Weeks	AA06A13TRA Absolute Reference Pressure Sensor, 1000 mmHg, 0.05% Accuracy, 4 VCR-F	UNIVERSAL	1.0	1000 mmHg	0.05% of Reading	4 VCR female	15 Weeks	$4,546
AA06A13TRB Absolute Reference Pressure Sensor, 1000 mmHg, 0.08% Accuracy, 4 VCR-F $4,227 15 Weeks	AA06A13TRB Absolute Reference Pressure Sensor, 1000 mmHg, 0.08% Accuracy, 4 VCR-F	UNIVERSAL	1.0	1000 mmHg	0.08% of Reading	4 VCR female	15 Weeks	$4,227
AA06A13TRC Absolute Reference Pressure Sensor, 1000 mmHg, 0.12% Accuracy, 4 VCR-F $3,879 15 Weeks	AA06A13TRC Absolute Reference Pressure Sensor, 1000 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	1.0	1000 mmHg	0.12% of Reading	4 VCR female	15 Weeks	$3,879
AA06A14TRB Absolute Reference Pressure Sensor, 10000 mmHg, 0.08% Accuracy, 4 VCR-F $4,690 15 Weeks	AA06A14TRB Absolute Reference Pressure Sensor, 10000 mmHg, 0.08% Accuracy, 4 VCR-F	UNIVERSAL	1.0	10000 mmHg	0.08% of Reading	4 VCR female	15 Weeks	$4,690
AA06A14TRC Absolute Reference Pressure Sensor, 10000 mmHg, 0.12% Accuracy, 4 VCR-F $4,342 15 Weeks	AA06A14TRC Absolute Reference Pressure Sensor, 10000 mmHg, 0.12% Accuracy, 4 VCR-F	UNIVERSAL	1.0	10000 mmHg	0.12% of Reading	4 VCR female	15 Weeks	$4,342

Configuration Option	Option Code
AA06A Baratron® Absolute Pressure Sensor	AA06A
Pressure Range
0.1 mmHg	.1T
1 mmHg	01T
10 mmHg	11T
100 mmHg	12T
1000 mmHg	13T
5000 mmHg	53T
10000 mmHg	14T
15000 mmHg	RBT
20000 mmHg	24T
25000 mmHg	RCT
Fittings (compatible with)
4 VCR female	R
Accuracy (Unidirectional Calibration)
±0.12% of Reading	C
±0.08% of Reading	B
±0.05% of Reading (1-1000 mmHg ranges only)	A
