385 Convectron® ATM Vacuum Pressure Transducers
Overview

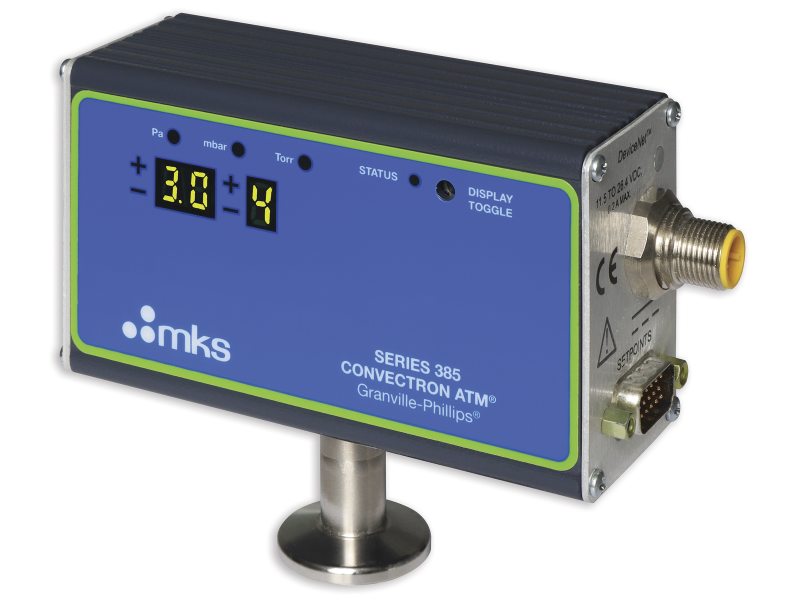

The Convectron® ATM Transducer combines control electronics with a piezo-resistive diaphragm sensor and the proven Convectron sensor to provide a continuous measurement from low vacuum to atmosphere. The compact design is easy to install and operate and includes a set point relay activation at a defined differential pressure from atmosphere. The Convectron ATM Transducer eliminates the need for two sensors in those applications that require low pressure measurement and an accurate indication of differential pressure at atmosphere, such as vacuum system loadlocks.
- Wide range of pressure measurement from atmosphere to 10-4 Torr
- Accurate and repeatable differential pressure set point at atmosphere
- Compact, rugged, RF and noise-immune module
- DeviceNet version includes an optional local display
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
385200-GD Replacement Vacuum Gauge, Convectron ATM, NW16 ISO-KF | $245.00 |
|
||||
|
|
385200-GE Replacement Vacuum Gauge, Convectron ATM, NW25 ISO-KF | $262.00 |
|
||||
|
|
385200-GG Replacement Vacuum Gauge, Convectron ATM, 2.75 in. OD CF |
|
|||||
|
|
385200-GQ Replacement Vacuum Gauge, Convectron ATM, 4 VCR Female | $250.00 |
|
||||
|
|
Vacuum Transducer, Convectron ATM, Display, DeviceNet, NW16 ISO-KF
$1,328.00
|
385620-4-GD-T Vacuum Transducer, Convectron ATM, Display, DeviceNet, NW16 ISO-KF | $1,328.00 |
|
|||
|
|
Vacuum Pressure Transducer, Convectron ATM, DeviceNet, NW25 ISO-KF
$1,343.00
|
385620-4-GE-T Vacuum Pressure Transducer, Convectron ATM, DeviceNet, NW25 ISO-KF | $1,343.00 |
|
|||
|
|
Vacuum Transducer, Convectron ATM, Display, DeviceNet, 4 VCR Female
$1,333.00
|
385620-4-GQ-T Vacuum Transducer, Convectron ATM, Display, DeviceNet, 4 VCR Female | $1,333.00 |
|
Specifications
-
Sensor TypeConvectron® ATM Gauge
-
Installation OrientationHorizontal preferred
-
Measurement Range1x10-4 to 1000 Torr (N2)
-
Set Point RangeAbsolute: 1x10-4 to 1000 Torr
Differential: 750 Torr below atmosphere to 125 Torr above atmosphere -
FilamentGold-plated tungsten
-
ConnectorMale, 15-pin, high-density D-sub
-
Operating Temperature0° to 40°C (32° to 104°F)
-
Storage Temperature-40°C to 85°C (-40° to 185°F)
-
RelaysFour single-pole, single-throw, (SPST) normally open
-
Relay Contact Rating1A at 30 VDC resistive, or AC non-inductive
-
Power Requirements11 to 26 VDC, 3.6 Watts maximum
-
Exposed Materials304 stainless steel, borosilicate glass, Kovar, alumina, NiFe alloy, polyimide, pyrex, ceramic, silicon, epoxy, RTV, Viton, and nickel
-
Case MaterialAluminum extrusion with powder coat
-
Internal Volume35 cc
-
Weight340 gm (12 oz) with 1/8 NPT Fitting
-
UnitsTorr
-
Display3-digit green LED, automatic ranging (optional)
-
ComplianceCE
Features
The Series 385 Convectron Module contains a piezoresitive diaphragm gauge which has silicone and epoxy seals that can be susceptible to permeation by helium gas. If a helium leak detector is used, it will register helium due to the permeation of the gas through these seals. When the module is saturated with helium, this permeation can contribute to base pressure readings below 10-7 Torr. For other common gases, including air, the leak rate is not measureable on a common leak detector.
- Wide Measurement Range: Allows for monitoring of vacuum system performance continuously from atmosphere to 1x10-4 Torr.
- Differential Diaphragm Sensor Technology: Outputs an accurate and repeatable indication of differential pressure at atmosphere through a set point relay.
- All-Metal Packaging: Provides a high level of immunity to RF noise
- Process Set Point Relays: Relay contacts are provided to control other vacuum equipment and provide a relay output at the defined atmospheric differential pressure set points.
- DeviceNet Version: Provides high-speed access to pressure measurement and easy integration with other sensors and controls.
- Optional Local Display: The DeviceNet version provides an optional, 3-digit green LED display that can be programmed to display in Torr.
- Low Power Requirements: System integration is easy using standard low voltage DC power sources.
