Overview

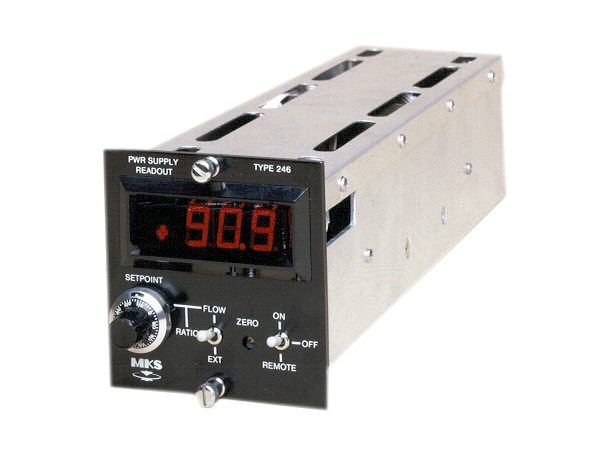

The 246 single channel, single readout is designed to control and display any flow transducer. The flow rate set point can be adjusted either through front panel controls or remotely through the rear panel analog interface. The unit supplies ±15 VDC power. The 246C Single-Channel Power Supply/Readout is for use with MKS Instruments models 358, 558, 1150, 1359, 1559, 1179, 1479.

Control and display any flow transducer
Compatible with models 358, 558, 1150, 1359, 1559, 1179, 1479
Adjust flow rate with front panel or analog interface

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Type	Display	For Use With	Availability	Featured Item	Price		Brand
		246C Power Supply, Display, 1 Channel, +/- 15 VDC $1,352 Contact Us	246C Power Supply, Display, 1 Channel, +/- 15 VDC	UNIVERSAL	0.0	1.0	0.0		0.0	Power Supply/Readout	3.5-digit 0.56 inch red LED, continuous display	MKS 179, 180, 579, 1179, 1479, 1480, 1559, 1579, 2179, M10M, M100	Contact Us		$1,352

Show All

Specifications

Display

3 1/2 digit 0.56" red LED, continuous display
Channels

1
Input Signal

1 x 0-5 VDC
Gas Correction Factor

0.1 - 4.0 (rear panel)
External Set Point

0-5 VDC
External ON/OFF

TTL-compatible
Analog Signal Output

Minimum load impedance: 10 k Ohm/channel

Unscaled Signal Output

1 x 0-5 VDC = 0-100% of F.S.
Scaled Signal Output

0-2 VDC (max.)
Trip Points

n/a
Power Supply Output

±15 VDC at 0.5 Amp, max. ripple < 10 mV
Power Requirements

117/234 VAC ±15%, 50-60 Hz
For Use With

Mass Flow Controllers 179, 180, 579, 1179, 1479, 1480, 1559, 1579, 2179, M10M, M100
Operating Temperature

15°C to 40°C

Specifications

Display

3 1/2 digit 0.56" red LED, continuous display
Channels

1
Input Signal

1 x 0-5 VDC
Gas Correction Factor

0.1 - 4.0 (rear panel)
External Set Point

0-5 VDC
External ON/OFF

TTL-compatible
Analog Signal Output

Minimum load impedance: 10 k Ohm/channel

Unscaled Signal Output

1 x 0-5 VDC = 0-100% of F.S.
Scaled Signal Output

0-2 VDC (max.)
Trip Points

n/a
Power Supply Output

±15 VDC at 0.5 Amp, max. ripple < 10 mV
Power Requirements

117/234 VAC ±15%, 50-60 Hz
For Use With

Mass Flow Controllers 179, 180, 579, 1179, 1479, 1480, 1559, 1579, 2179, M10M, M100
Operating Temperature

15°C to 40°C

Features

Interface Connector Pin-Outs

J9, 9-pin male Type "D"
Pin	Description
1	Analog Return
2	0 to 1 VDC (nominal) Corrected Flow Output
3	Analog Return
4	Remote On/Off
5	No Connection
6	0 to 5 VDC MFC Output
7	Set Point Input
8	Digital Ground
9	Chassis Common

Mass Flow Controller Connector Pin-Outs

J8, 15-pin female Type "D"
Pin	Description
1	No Connection
2	Flow Input Signal
3	No Connection
4	No Connection
5	Power Ground
6	-15 VDC (Supplied by the 246)
7	+15 VDC (Supplied by the 246)
8	Set Point Output Signal
9	No Connection
10	0 to 5 VDC Flow Output
11	No Connection
12	Analog Return
13	No Connection
14	No Connection
15	Chassis Common

Features

Interface Connector Pin-Outs

J9, 9-pin male Type "D"
Pin	Description
1	Analog Return
2	0 to 1 VDC (nominal) Corrected Flow Output
3	Analog Return
4	Remote On/Off
5	No Connection
6	0 to 5 VDC MFC Output
7	Set Point Input
8	Digital Ground
9	Chassis Common

Mass Flow Controller Connector Pin-Outs

J8, 15-pin female Type "D"
Pin	Description
1	No Connection
2	Flow Input Signal
3	No Connection
4	No Connection
5	Power Ground
6	-15 VDC (Supplied by the 246)
7	+15 VDC (Supplied by the 246)
8	Set Point Output Signal
9	No Connection
10	0 to 5 VDC Flow Output
11	No Connection
12	Analog Return
13	No Connection
14	No Connection
15	Chassis Common
