1651C Displayless Digital Pressure Controller

Products
Resources
Contact Us

1651c digital/analog pressure controller

Overview

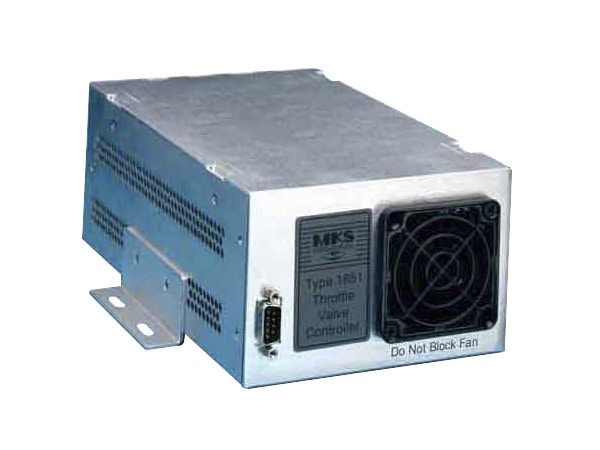

The 1651C is a self-tuning, displayless pressure controller which operates from user-supplied ±15 VDC input power. Its compact size allows for installation anywhere on the process system, saving valuable rack space. The 1651 can be commanded through RS-232 communications, or it will accept an analog set point for pressure or position control. Alternately, there are five pre-programmable pressure or position set points which can be selected via TTL signals.

Compact size for installation anywhere on the process system
Control through RS-232 communications or analog set points
Self-tuning algorithm determines optimal control parameters

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		For Use With	Type	Display	Set Points	Availability	Featured Item	Price		Brand
		1651C2S Pressure Valve Controller, No Display, 653 and 253 Throttle Valves $2,048 Contact Us	1651C2S Pressure Valve Controller, No Display, 653 and 253 Throttle Valves	UNIVERSAL	0.0	1.0	0.0		0.0	653, 253 Valves	Pressure Valve Controller	none	5	Contact Us		$2,048

Show All

Specifications

Type

1651C Displayless Digital Pressure Controller
For Use With

653 and 253 Exhaust Throttle Valves
Power Input

±15 VDC ±5%
For 653 Valve: 1 Amp + transducer current minimum
For 253 Valve: 0.5 Amp + transducer current minimum
Not to exceed 7 Amps
Power Output

Available to external transducers: ±15 Volts @ 3 Amps max. (90 Watts) from an external power supply with a capacity of ±15 Volts @ 5 Amps (150 Watts)
Pressure Control Signal

0-5 VDC, 0-10 VDC, 0-1 VDC, user selectable
Output Signal

0-5 or 0-10 VDC for 0-100% valve position and 0-10 VDC for 0-100% Full Scale pressure
Set Points

Programmable: 5 total, programmable in any combination for pressure or position (adjustable via RS-232; selectable via TTL or RS-232)
External Analog: 1; pressure or position, 0-5 or 0-10 VDC
Relay Output

2, process limits: 24 Volts VDC @ 1 Amp resistive

Repeatability

±0.1% of Full Scale
Operating Temperature

15 - 50°C (60 - 122°F)
Display

none
User Interface

Analog, TTL (16 inputs, 6 outputs) and RS-232
Connectors

Power Connector: 9-pin Type "D" male Valve: 9-pin Type "D" female
I/O: 37-pin Type "D" female Transducer: 15-pin Type "D" female RS-232: 9-pin Type "D" male
Dimensions

3 1/2 inches H x 6.7 inches W x 9.15 inches D
Controls

Soft Start, Self-tuning Unit, PID Control, Remote Zero, Remote Control Override (Open, Close, hold), Position Control Capability

Specifications

Type

1651C Displayless Digital Pressure Controller
For Use With

653 and 253 Exhaust Throttle Valves
Power Input

±15 VDC ±5%
For 653 Valve: 1 Amp + transducer current minimum
For 253 Valve: 0.5 Amp + transducer current minimum
Not to exceed 7 Amps
Power Output

Available to external transducers: ±15 Volts @ 3 Amps max. (90 Watts) from an external power supply with a capacity of ±15 Volts @ 5 Amps (150 Watts)
Pressure Control Signal

0-5 VDC, 0-10 VDC, 0-1 VDC, user selectable
Output Signal

0-5 or 0-10 VDC for 0-100% valve position and 0-10 VDC for 0-100% Full Scale pressure
Set Points

Programmable: 5 total, programmable in any combination for pressure or position (adjustable via RS-232; selectable via TTL or RS-232)
External Analog: 1; pressure or position, 0-5 or 0-10 VDC
Relay Output

2, process limits: 24 Volts VDC @ 1 Amp resistive

Repeatability

±0.1% of Full Scale
Operating Temperature

15 - 50°C (60 - 122°F)
Display

none
User Interface

Analog, TTL (16 inputs, 6 outputs) and RS-232
Connectors

Power Connector: 9-pin Type "D" male Valve: 9-pin Type "D" female
I/O: 37-pin Type "D" female Transducer: 15-pin Type "D" female RS-232: 9-pin Type "D" male
Dimensions

3 1/2 inches H x 6.7 inches W x 9.15 inches D
Controls

Soft Start, Self-tuning Unit, PID Control, Remote Zero, Remote Control Override (Open, Close, hold), Position Control Capability
