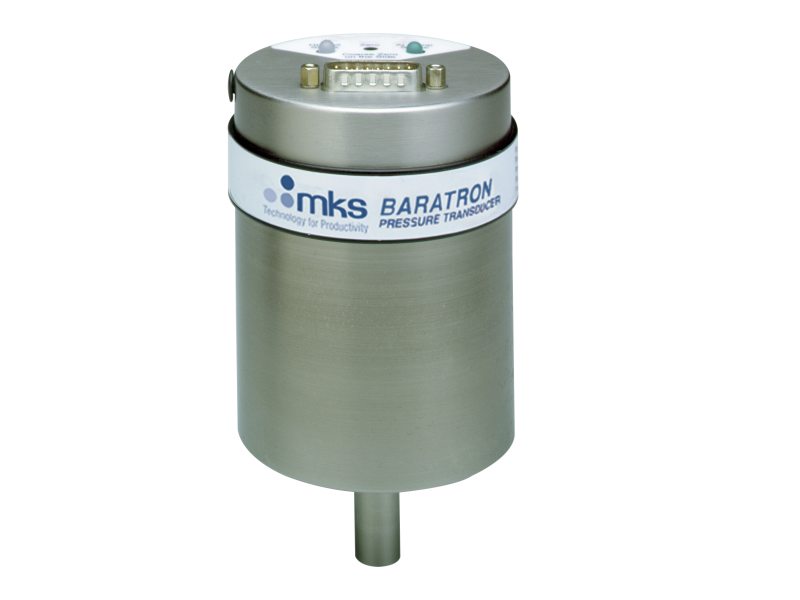

The D24F13TGACB0 Baratron® Heated Dual-Range Absolute Capacitance Manometer with Trip Relays features 1000 Torr full scale pressure measurement with a 10 to 1 gain on the second range, and a size NW16 ISO-KF fitting. With two distinct measurement outputs, the D24F provides accurate, reliable, and repeatable pressure measurements for multi-step processes. The D24F is temperature controlled at 45°C. The lower pressure limitation of system A/D resolution is now minimized with higher output signal levels. The instrument operates with ±15 VDC (±5%) input at 400 mA (max.), and provides two outputs of 0 to 10 VDC linear with pressure. The D24F's sensor exposes only Inconel® to the process permitting the use with corrosive or dirty gases. Measurements are independent of gas composition. The D24F also features two trip point relays, each separately adjustable from 0.1 to 100% of Full Scale. Dual color LEDs indicate relay status. Typical relay uses include pump cross-over and valve activation. The modern stainless steel enclosure provides a cleanroom compatible product.
