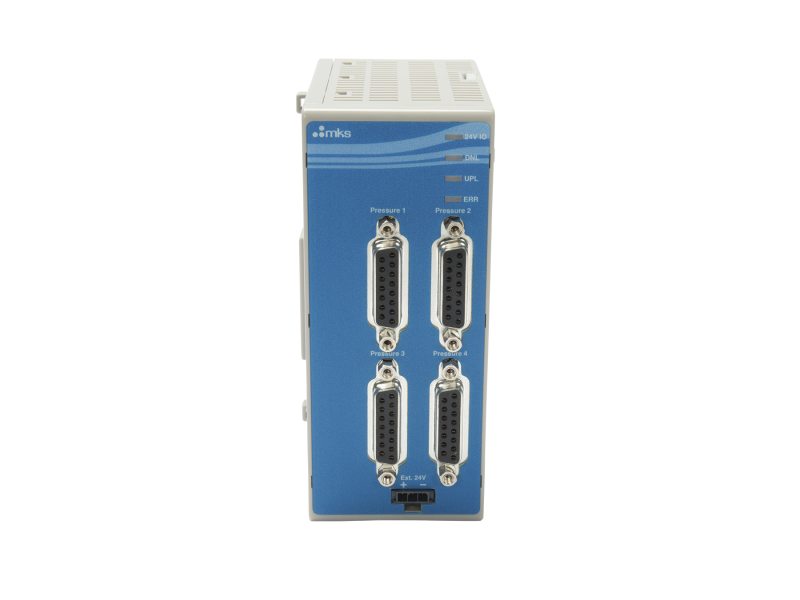

Pressure Input Module, 15 pin D-Sub Connector, 4 Channel
Model: AS11900G-03
Pressure Input Module, 15 pin D-Sub Connector, 4 Channel
Pressure Input Module, 15 pin D-Sub Connector, 4 Channel
Model: AS11900G-03
Overview
Overview
The AS11900G-03 Pressure Input Module provides a compact and high density solution for integrating MKS pressure devices with the MKS Automation Platform PAC or CM modules. Pressure Input Modules support 15 pin analog baratrons, transducers, convectrons, pirani's, piezos, and more. The Pressure Module has a direct 1:1 pin mapping of the pressure devices, so connected pressure devices that are fully powered and controlled through the Pressure slice. Each MKS Pressure Module supports integrating 4 MKS pressure devices.
Technical Specs
-
TypePressure Input Module
-
ADC Native Resolution14-bit
-
AI latency and repeatabilityResponse Time: 300µsec ±10%
-
Number of Inputs4, Single Ended (1 for each pressure signal input)
-
Power Consumption24 V Core: 3.5 W, 24 V IO: Maximum 120 W (When all 4 pressure devices consume 0.8Amp Maximum each from ±15 V power supply)
-
Anti-alias HW Filtering200Hz ±20%, 6dB/octave minimum
-
Connector15 pin D-sub
-
Maximum Current Delivery per connector0.8 Amps
-
Input Voltage24 VDC
-
Maximum error over full range±0.15% of Full Scale (20°C to 30°C)
-
Minimum Input CMRR50 dB, 0-1 kHz
-
Minimum Input Impedance1 Meg-ohm
-
MTBF10 years at 80% confidence level
-
ProtectionESD to IEC 61000-4-2 ±4 kV contact,
-
Sampling Rate6.25 kHz (160µsec, for all 4 channels) short to 24 V, +15 V, or -15 V
-
Operating Temperature0 - 40°C, with 2°C upper limit reduction per 1000 ft above sea level. Note: At 40°C ambient, power consumption of the ±15V power supply should be limited to 100W (3.3A @ both ±15V) The pressure module should be located as the last module (right-most module in a stack)
-
Storage Temperature-40 - 75°C
-
Altitudeup to 2000 meters
-
Humidity5 - 95% non-condensing
-
Dimensions52.5 x 125 x 92.3 mm
-
MountingDIN rail
Pressure Input Module, 15 pin D-Sub Connector, 4 Channel
